Ozone Check - UV
Software Controlled Ozone Cabinet for the evaluation of ozone resistance of rubber samples


Standards the instrument complies with:
ASTM D1056;   ASTM D1149;   ASTM D1171;   ASTM D4575;   DIN 53_509-1;   EN 681-1;   FIAT 50417;   ISO 3011;   ISO 7326;   ISO 7840;   ISO 12046;   ISO 1431-1;   ISO 1431-3;   ISO 6916-1;   ISO 6916-2;   JIS K_6259;   SAE J1401;

Overview
The instrument Ozone Check - UV is a complete ozone cabinet conforming to ISO 1431 and ASTM D1149 for the measurement of the resistance to cracking under static or dynamic tensile strain of rubber samples or technical articles. The instrument permits to set the test conditions in order to comply with international standard methods.

Test Conditions
The Instruments permits the regulation of:
• Ozone Concentration, between 10 and 500 pphm (UV absorption detector);
• Test temperature, between ambient +5°C and +70°C;
• Air Flow in the Test Chamber, between 1 and 3 air changes/minute.

Key Features
• Automatic regulation of Ozone Concentration, Temperature and Air Flow.
• Performance of Static or Dynamic tests
• UV-absorption Ozone detector
• Stainless steel cylindrical test chamber for homogeneous ozone distribution
• Generation and shooting down of the Ozone in closed circuit (no exhaust evacuation needed)
• CE labelling



OzoneCheck_10 Software
The program allows you to:
• Prepare customized test procedures by defining the test parameters (ozone concentration, temperature, number of air changes, duration of the test, concentration of humidity).
• Automatically adjust the instrument according to the parameters of the selected test procedure
• Display the Curves of the ozone concentration, humidity and temperature over time.
• Save test curves and images imported into Gibitre's SQL database.

Test report
Can be printed or saved to pdf in one of the available languages. The format of the Test Report can be customized by the user.

Test Procedures
The Test procedures define the test conditions relating to:
• Ozone concentration
• Test temperature
• Air flow rate
• Duration of the test
• Relative humidity concentration (optional)

When a test procedure is selected, the instrument adjustment is done completely automatically.

It is possible to copy and modify the predefined Test Procedures or prepare completely customized ones through the Datagest program (installed together with the OzoneCheck program).



UV Ozone Detector
The Ozone concentration measurement device via UV sensor is conforming to ISO 1431-3 and ASTM D4575 standards.
The device:
• Continuously detects the concentration of ozone inside the test chamber
• Performs a self-calibration every 30 seconds by comparing the measurement of the ozonated air with pure air
• Regulates the generation of ozone in the test chamber by means of a PID control ensuring that the test conditions are reached within the times established by the standard and minimizing oscillations.

The device can be supplied with an official calibration certificate issued by an accredited laboratory.

Test Chamber
Gibitre Ozone Tester is the only instrument with a cylindrical test chamber with symmetrical air extraction by means of a double-chamber. This unique feature ensures a homogeneous distribution of ozonized air inside the chamber that could not be obtained with a cubic chamber. The chamber is made of stainless steel. The instrument has an inspection windows in the front with two lights on the sides which permit to inspect the samples during the test without need of stopping the test and removing the samples from the chamber.

Support for Static test in traction
• Sample holder for the static strain of 2-4 samples with adjustable distance of the grips.
• Static test piece holder with planetary effect, in compliance with ISO 1431-1 standard. It moves the test pieces over the whole volume of the chamber for a more homogeneous ozone atmosphere exposition.
Up to 64 samples (with 10 mm width) can be tested at the same time with the device.



Support for Static test in traction of Rubber Hoses
Sample holders for tests on rubber hoses according to ISO 7326-method 1 and 2

Support for dynamic test
In compliance with ISO 1431, ASTM D1149 and SAE J1401. To be inserted into test chamber for the study of ozone resistance of cured rubber under dynamic conditions (from 3 to 30 cycles/min - 0.05 to 0.5 Hz).
Up to 10 samples can be tested at the same time

Management of Test Results

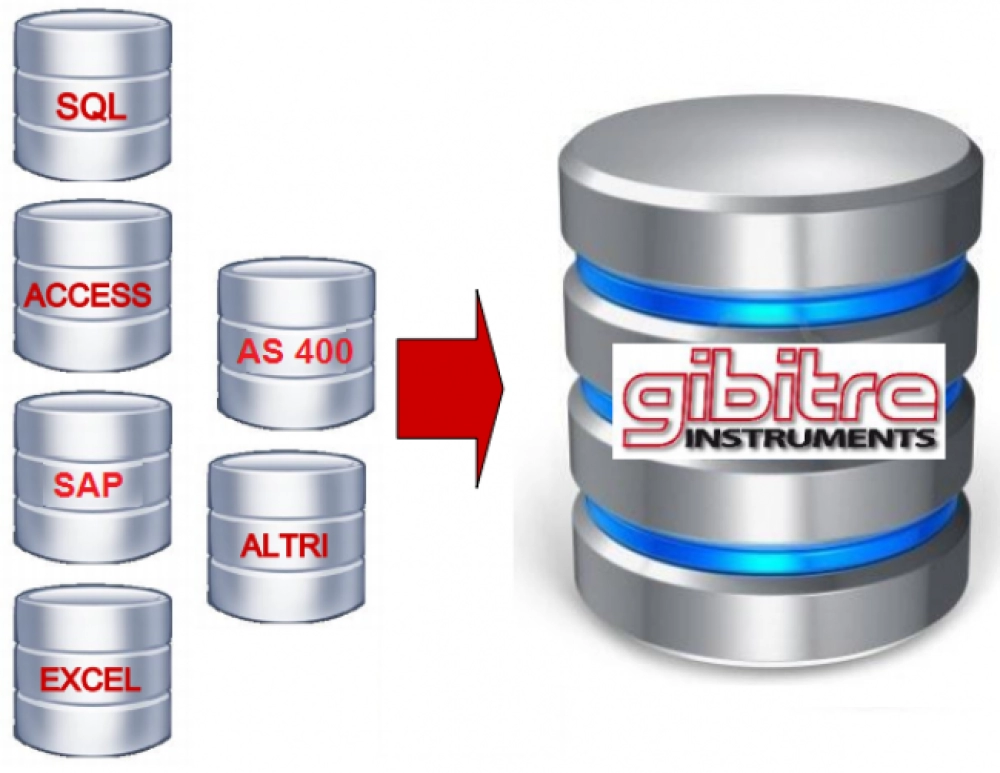

The results and test curves of all the tests carried out are saved in the Gibitre SQL database and are available through the Datagest program.

Datagest is the Laboratory Information Management System (LIMS) which is always installed in combination with all Gibitre instrument-control programs.
The program is the collector for all the test result produced with the instruments connected and permits to manage the common Archives used by the instruments (Product List, Customer List, Tolerance limits, Order List, etc)



Industry 4.0 integration
The instrument and the software have been specifically developed to optimize integration with other environments.
The database in SQL format and the Gibitre_Company_Connect program allows you synchronize your company management software with Gibitre database and to speed up the identification of the tests and to use bar-code readers or similar devices.

Continuation of the Test after unwanted interruption
The instrument continuously stores the working conditions. After an electrical black out, the user can restart the program and continue the interrupted test.

Standard Calibration service for Ozone Cabinet
The calibration is performed with reference to the requirements of ISO 1431 standard.
The service includes:
• Ordinary maintenance of the instrument
• Complete cleaning of the Ozone Detector with replacement of the internal filters.
• Calibration of the temperature inside the test chamber (40°C).
• Calibration of the Ozone Concentration inside the test chamber (at 50 pphm, 100 pphm, 150 pphm, 200 pphm).
• Calibration of the time for reaching ozone concentration set (NEW)
• Calibration of the relative Humidity inside the chamber at 50% and 75% (Only for instruments with humidity control)
• Final check of the correct working of the instrument.
• Issue and e-mail shipment of the Calibration Certificate with traceability to primary standards.



Safety Devices
• The instrument automatically locks the opening of the instrument when the ozone concentration exceeds 10 pphm to prevent undesired contact with ozonized air.
• The generation and shooting down of the Ozonized airflow is made in closed circuit in order to meet safety requirements and to render an aspiration system unnecessary.
• Safety sensors protect the instrument from excessive temperature and humidity due to incorrect set.
• Safety Push-button
• The instrument is supplied with CE Labelling

Hardware requirements
• Programs can be installed on standard PCs with WINDOWS 10 or 11 OPERATING SYSTEM.
• The CONNECTION between the instruments and the PC is made using the USB CABLE supplied with the instrument.
• The programs are COMPATIBLE WITH ANTIVIRUS, and other programs installed on the PC.

Development and production
The instrument is totally developed and produced in the plant of Gibitre Instruments in Italy.
All the mechanical parts are produced in the company workshop using modern CNC machines.
Components and sensors from well-known brands are selected in order to ensure the maximum reliability in the measures
Internal trained personnel takes care of all the production stages: assembly, start-up, calibration, packing, shipment and installation.


Instrument Characteristics

Test chamber
Cylindrical Stainless Steel test chamber with internal illumination and inspection window. Ø 550 mm; H 550 mm. Volume 155 Litres
Control of Ozone Concentration
Automatic between 10 and 500 PPHM (50.5 to 505 mPa). UV Absorption Analyzer according to ISO 1431-3 and ASTM D4575 with ± 3% accuracy
Temperature control (standard instrument)
From Room Temperature +5°C to 70°C. Accuracy: 0.1°C.
Air flow
Adjustable from 1 to 3 changes/min (air change speed between 10 and 30 mm/sec)
Internal fan according to ISO 1431.
Ozone circuit type
Closed circuit with continuous ozone production and shooting down through self regenerating active carbon filter.
Sample holders

Static Sample Holders
• Static strain and planetary displacement according to ISO 1431-1 standard (32 to 64 samples)
• Tests on rubber hoses according to ISO 7326
Sample holder for dynamic test
Frequency: 3 to 30 cicles/min (0.05 to 0.5 Hz). Holder for 10 samples
Software

Results storage
The test result sand the curves are stored in the SQL Gibitre database which is installed in combination with the software
Test Data produced
Ozone concentration, temperature and Humidity level (only with Humidity control option) during test time
Data Printout
Test identification data, test parameters, sample characteristics, curves of ozone concentration, temperature, relative humidity, notes about results, images uploaded during the test.
Software usage Languages
Italian, English, French, Spanish, German, Portuguese, Russian, Chinese, Japanese, Turkish, Polish, Czech


Safety Devices

Safety Devices
Safety Pushbutton.
Safety Lock of the door of the instrument if ozone concentration is higher than 10 pphm.
Safety thermostat for overheating
Labelling
CE Labelling
Calibration

Calibration Report
Calibration report with traceability to primary standards in conformity with the Calibration requirements specified in ISO 1431-1 standard
Calibrated parameters
The certificate includes the calibration of:
- Temperature (40°C).
- Ozone Concentration (at 50 pphm, 100 pphm, 150 pphm, 200 pphm)
- Time for reaching ozone concentration set
- Relative Humidity (at 50% and 75%)
Construction Characteristics

Power supply
220 VAC,50/60 Hz, 2.5 kW, single phase, (110 VAC, 60 Hz on request)
Sample holders Elevator
Lifting gear for up and down movement to help in inspection of the different sample holders
Dimensions
(W x D x H) 1060 x 1000 x 1080 mm (2390 mm with lifting system)
Weight
370 Kg
Personal Computer (optional)
Minimum Configuration: Intel Core i5 4 GB RAM.
Compatible Operating Systems: Windows 10;
Connection to the instrument via USB Cable (included)

Gibitre Instruments
Via dell'industria, 18
Bergamo (Italy)
te. +39 035 461146
www.gibitre.it
info@gibitre.it

Copyright Gibitre Instruments
Software Controlled Ozone Cabinet for the evaluation of ozone resistance of rubber samples
Optimist.it

Ozone Check - UV

Get a Quotation
€
Standards
Standards the instrument complies with:
Automotive
PRESCRIZIONI PER MATERIALI NON METALLICI - Controllo della resistenza all'invecchiamento in atmosfera arricchita di ozono della gomma sotto allungamento impostoFIAT 50417
Belts
Synchronous belt drives — Automotive belts — Determination of physical propertiesISO 12046
Cellular Products
Standard Specification for Flexible Cellular Materials—Sponge or Expanded RubberASTM D1056Flexible cellular polymeric materials -- Sponge and expanded cellular rubber products -- Specification -- Part 1: SheetingISO 6916-1Flexible cellular polymeric materials – Sponge and expanded cellular rubber products – Specification – Part 2: Mouldings and extrusionsISO 6916-2
Rubber & Elastomers
Rubber- or plastics-coated fabrics -- Determination of resistance to ozone cracking under static conditionsISO 3011Elastomeric seals - Materials requirements for pipe joint seals used in water and drainage applications- Part 1: Vulcanized rubberEN 681-1Standard Test Methods for Rubber Deterioration—Cracking in an Ozone Controlled EnvironmentASTM D1149Standard Test Method for Rubber Deterioration—Surface Ozone Cracking Outdoors (Triangular Specimens)ASTM D1171Standard Test Methods for Rubber Deterioration—Reference and Alternative Method(s) for Determining Ozone Level in Laboratory Test ChambersASTM D4575Rubber, vulcanized or thermoplastic -- Resistance to ozone cracking -- Part 1: Static and dynamic strain testingISO 1431-1Rubber, vulcanized or thermoplastic -- Resistance to ozone cracking -- Part 3: Reference and alternative methods for determining the ozone concentration in laboratory test chambersISO 1431-3Rubber, vulcanized or thermoplastics — Determination of ozone resistance JIS K_6259Prüfung von Kautschuk und Elastomeren — Bestimmung der Beständigkeit gegen Rissbildung unter Ozoneinwirkung — Teil 1: Statische BeanspruchungDIN 53_509-1
Rubber Hoses
Rubber and plastics hoses -- Assessment of ozone resistance under static conditionsISO 7326Small Craft - Fire resistant fuel hoses ISO 7840Road Vehicle - Hydraulic Brake Hose Assemblies for Use With Nonpetroleum-Base Hydraulic FluidsSAE J1401

Software Controlled Ozone Cabinet for the evaluation of ozone resistance of rubber samples
References
Gibitre Ozone Check
is currently installed in
18 countries
Request the List of top References
Why Choose Ozone Check ?
Overview
The instrument Ozone Check - UV is a complete ozone cabinet conforming to ISO 1431 and ASTM D1149 for the measurement of the resistance to cracking under static or dynamic tensile strain of rubber samples or technical articles. The instrument permits to set the test conditions in order to comply with international standard methods.
Test Conditions
The Instruments permits the regulation of:
• Ozone Concentration, between 10 and 500 pphm (UV absorption detector);
• Test temperature, between ambient +5°C and +70°C;
• Air Flow in the Test Chamber, between 1 and 3 air changes/minute.
Key Features
• Automatic regulation of Ozone Concentration, Temperature and Air Flow.
• Performance of Static or Dynamic tests
• UV-absorption Ozone detector
• Stainless steel cylindrical test chamber for homogeneous ozone distribution
• Generation and shooting down of the Ozone in closed circuit (no exhaust evacuation needed)
• CE labelling

Software
OzoneCheck_10 Software
The program allows you to:
• Prepare customized test procedures by defining the test parameters (ozone concentration, temperature, number of air changes, duration of the test, concentration of humidity).
• Automatically adjust the instrument according to the parameters of the selected test procedure
• Display the Curves of the ozone concentration, humidity and temperature over time.
• Save test curves and images imported into Gibitre's SQL database.
Test report
Can be printed or saved to pdf in one of the available languages. The format of the Test Report can be customized by the user.
Example of test Report
Test Procedures
The Test procedures define the test conditions relating to:
• Ozone concentration
• Test temperature
• Air flow rate
• Duration of the test
• Relative humidity concentration (optional)

When a test procedure is selected, the instrument adjustment is done completely automatically.

It is possible to copy and modify the predefined Test Procedures or prepare completely customized ones through the Datagest program (installed together with the OzoneCheck program).
Construction Technology
UV Ozone Detector
The Ozone concentration measurement device via UV sensor is conforming to ISO 1431-3 and ASTM D4575 standards.
The device:
• Continuously detects the concentration of ozone inside the test chamber
• Performs a self-calibration every 30 seconds by comparing the measurement of the ozonated air with pure air
• Regulates the generation of ozone in the test chamber by means of a PID control ensuring that the test conditions are reached within the times established by the standard and minimizing oscillations.

The device can be supplied with an official calibration certificate issued by an accredited laboratory.
Test Chamber
Gibitre Ozone Tester is the only instrument with a cylindrical test chamber with symmetrical air extraction by means of a double-chamber. This unique feature ensures a homogeneous distribution of ozonized air inside the chamber that could not be obtained with a cubic chamber. The chamber is made of stainless steel. The instrument has an inspection windows in the front with two lights on the sides which permit to inspect the samples during the test without need of stopping the test and removing the samples from the chamber.
Support for Static test in traction
• Sample holder for the static strain of 2-4 samples with adjustable distance of the grips.
• Static test piece holder with planetary effect, in compliance with ISO 1431-1 standard. It moves the test pieces over the whole volume of the chamber for a more homogeneous ozone atmosphere exposition.
Up to 64 samples (with 10 mm width) can be tested at the same time with the device.
Support for Static test in traction of Rubber Hoses
Sample holders for tests on rubber hoses according to ISO 7326-method 1 and 2
Support for dynamic test
In compliance with ISO 1431, ASTM D1149 and SAE J1401. To be inserted into test chamber for the study of ozone resistance of cured rubber under dynamic conditions (from 3 to 30 cycles/min - 0.05 to 0.5 Hz).
Up to 10 samples can be tested at the same time
Management of Test Results
The results and test curves of all the tests carried out are saved in the Gibitre SQL database and are available through the Datagest program.

Datagest is the Laboratory Information Management System (LIMS) which is always installed in combination with all Gibitre instrument-control programs.
The program is the collector for all the test result produced with the instruments connected and permits to manage the common Archives used by the instruments (Product List, Customer List, Tolerance limits, Order List, etc)
Industry 4.0 integration
The instrument and the software have been specifically developed to optimize integration with other environments.
The database in SQL format and the Gibitre_Company_Connect program allows you synchronize your company management software with Gibitre database and to speed up the identification of the tests and to use bar-code readers or similar devices.
Continuation of the Test after unwanted interruption
The instrument continuously stores the working conditions. After an electrical black out, the user can restart the program and continue the interrupted test.
Standard Calibration service for Ozone Cabinet
The calibration is performed with reference to the requirements of ISO 1431 standard.
The service includes:
• Ordinary maintenance of the instrument
• Complete cleaning of the Ozone Detector with replacement of the internal filters.
• Calibration of the temperature inside the test chamber (40°C).
• Calibration of the Ozone Concentration inside the test chamber (at 50 pphm, 100 pphm, 150 pphm, 200 pphm).
• Calibration of the time for reaching ozone concentration set (NEW)
• Calibration of the relative Humidity inside the chamber at 50% and 75% (Only for instruments with humidity control)
• Final check of the correct working of the instrument.
• Issue and e-mail shipment of the Calibration Certificate with traceability to primary standards.
Example of Calibration Report
Safety Devices
• The instrument automatically locks the opening of the instrument when the ozone concentration exceeds 10 pphm to prevent undesired contact with ozonized air.
• The generation and shooting down of the Ozonized airflow is made in closed circuit in order to meet safety requirements and to render an aspiration system unnecessary.
• Safety sensors protect the instrument from excessive temperature and humidity due to incorrect set.
• Safety Push-button
• The instrument is supplied with CE Labelling
Hardware requirements
• Programs can be installed on standard PCs with WINDOWS 10 or 11 OPERATING SYSTEM.
• The CONNECTION between the instruments and the PC is made using the USB CABLE supplied with the instrument.
• The programs are COMPATIBLE WITH ANTIVIRUS, and other programs installed on the PC.
Development and production
The instrument is totally developed and produced in the plant of Gibitre Instruments in Italy.
All the mechanical parts are produced in the company workshop using modern CNC machines.
Components and sensors from well-known brands are selected in order to ensure the maximum reliability in the measures
Internal trained personnel takes care of all the production stages: assembly, start-up, calibration, packing, shipment and installation.
Technical specification
Reference Standards
Standards the instrument complies with:  FIAT 50417; ISO 12046; ASTM D1056; ISO 6916-1; ISO 6916-2; ISO 3011; EN 681-1; ASTM D1149; ASTM D1171; ASTM D4575; ISO 1431-1; ISO 1431-3; JIS K_6259; DIN 53_509-1; ISO 7326; ISO 7840; SAE J1401;
Instrument Characteristics
Test chamber  Cylindrical Stainless Steel test chamber with internal illumination and inspection window. Ø 550 mm; H 550 mm. Volume 155 Litres  Control of Ozone Concentration  Automatic between 10 and 500 PPHM (50.5 to 505 mPa). UV Absorption Analyzer according to ISO 1431-3 and ASTM D4575 with ± 3% accuracy  Temperature control (standard instrument)  From Room Temperature +5°C to 70°C. Accuracy: 0.1°C.  Air flow  Adjustable from 1 to 3 changes/min (air change speed between 10 and 30 mm/sec)
Internal fan according to ISO 1431. 		 Ozone circuit type  Closed circuit with continuous ozone production and shooting down through self regenerating active carbon filter.
Sample holders
Static Sample Holders  • Static strain and planetary displacement according to ISO 1431-1 standard (32 to 64 samples)
• Tests on rubber hoses according to ISO 7326 		 Sample holder for dynamic test  Frequency: 3 to 30 cicles/min (0.05 to 0.5 Hz). Holder for 10 samples
Software
Results storage  The test result sand the curves are stored in the SQL Gibitre database which is installed in combination with the software  Test Data produced  Ozone concentration, temperature and Humidity level (only with Humidity control option) during test time  Data Printout  Test identification data, test parameters, sample characteristics, curves of ozone concentration, temperature, relative humidity, notes about results, images uploaded during the test.  Software usage Languages  Italian, English, French, Spanish, German, Portuguese, Russian, Chinese, Japanese, Turkish, Polish, Czech
Safety Devices
Safety Devices  Safety Pushbutton.
Safety Lock of the door of the instrument if ozone concentration is higher than 10 pphm.
Safety thermostat for overheating 		 Labelling  CE Labelling
Calibration
Calibration Report  Calibration report with traceability to primary standards in conformity with the Calibration requirements specified in ISO 1431-1 standard  Calibrated parameters  The certificate includes the calibration of:
- Temperature (40°C).
- Ozone Concentration (at 50 pphm, 100 pphm, 150 pphm, 200 pphm)
- Time for reaching ozone concentration set
- Relative Humidity (at 50% and 75%)
Construction Characteristics
Power supply  220 VAC,50/60 Hz, 2.5 kW, single phase, (110 VAC, 60 Hz on request)  Sample holders Elevator  Lifting gear for up and down movement to help in inspection of the different sample holders  Dimensions  (W x D x H) 1060 x 1000 x 1080 mm (2390 mm with lifting system)  Weight  370 Kg  Personal Computer (optional)  Minimum Configuration: Intel Core i5 4 GB RAM.
Compatible Operating Systems: Windows 10;
Connection to the instrument via USB Cable (included)
FAQ
How to convert pphm ozone concentration into Mpa ? The differences in atmospheric pressure can influence the effective ozone concentration, and hence the result, when the ozone concentration is expressed in parts per billion (or parts per hundred million) by volume. This effect can be eliminated by expressing the ozone content of the ozonized air in terms of the partial pressure of ozone, i.e. in millipascals, and making comparisons at constant ozone partial pressure. Under standard conditions of atmospheric pressure and temperature (101kPa, 273K), an ozone concentration of 10ppb is equivalent to an ozone partial pressure of 1,01mPa. For further guidance, please refer to ISO 1431-3.
How does the UV Ozone Detector work? How is self-calibration done? The ozone concentration measuring device measures the absorption of UV light caused by the presence of ozone in the air which is passed through a calibrated glass tube. The device measures the difference between the light energy generated by the light source and that received by the measurement sensor. For the perfect adjustment of the measuring device for long periods it is necessary to measure the micro-variations of the emitting power of the light source. This is done by activating the self-calibration procedure every 30 seconds which allows to measure the actual light power produced by the emitting source by passing ozone-free air through the measuring glass tube.
