Automatic
Hardness Check - Drive
Automatic instruments for Shore, IRHD & VLRH Hardness Measurements with interchangeable Measuring Heads
Standards the instrument complies with:
ASTM D1414; ASTM D1415; ASTM D2240; EN 681-1; FIAT 50408; FIAT 50411; ISO 868; ISO 48-2; ISO 48-3; ISO 48-4; ISO 12046; VDA 675-202;
ASTM D1414; ASTM D1415; ASTM D2240; EN 681-1; FIAT 50408; FIAT 50411; ISO 868; ISO 48-2; ISO 48-3; ISO 48-4; ISO 12046; VDA 675-202;
Gibitre automatic hardness tester for O-rings & rubber: Shore/IRHD, ISO 17025
Gibitre’s automatic hardness tester with interchangeable heads is a practical, configurable solution for verifying the hardness of materials and finished parts. Switch between Shore (A, D, 00, A0, Micro) and IRHD (Micro, N, L, H, VLRH) scales in seconds.
All heads conform to ISO 48-2, ISO 48-4, ASTM D2240, and ASTM D1415.
The motorized stand applies the indenter automatically and performs multi-point tests, ideal for O-rings and rubber hoses with dedicated centering devices. A digital display and soft-touch panel support stand-alone operation with instant result readout.
For traceability and control, Hardness Check software enables sample identification, archiving of results and curves, report and label generation, tolerance checks, and statistical analysis.
ACCREDIA calibration by Gibitre’s ISO 17025 accredited laboratory strengthens measurement reliability. For teams needing flexible measurement tools for diverse materials, this tester streamlines inspection and speeds decisions.

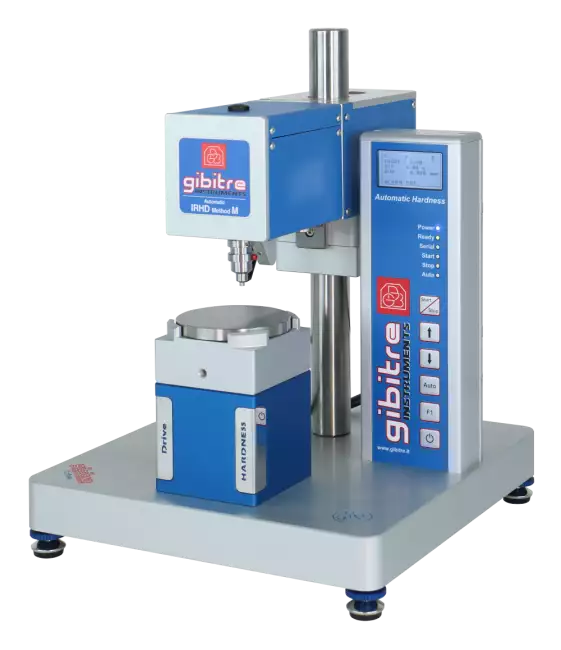

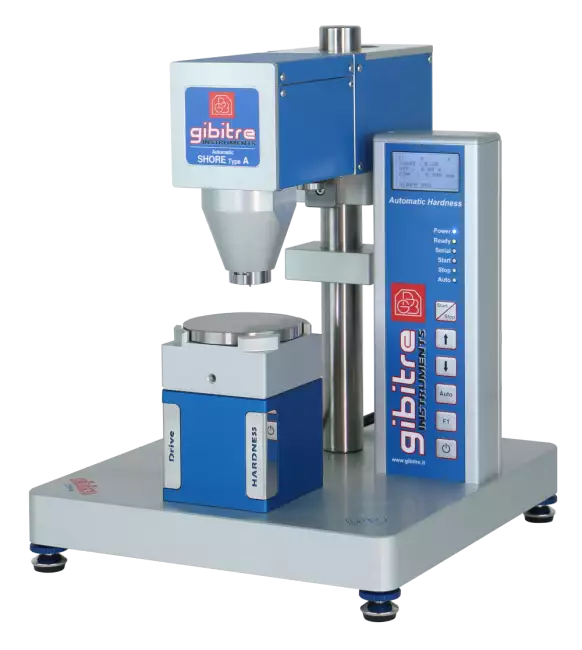

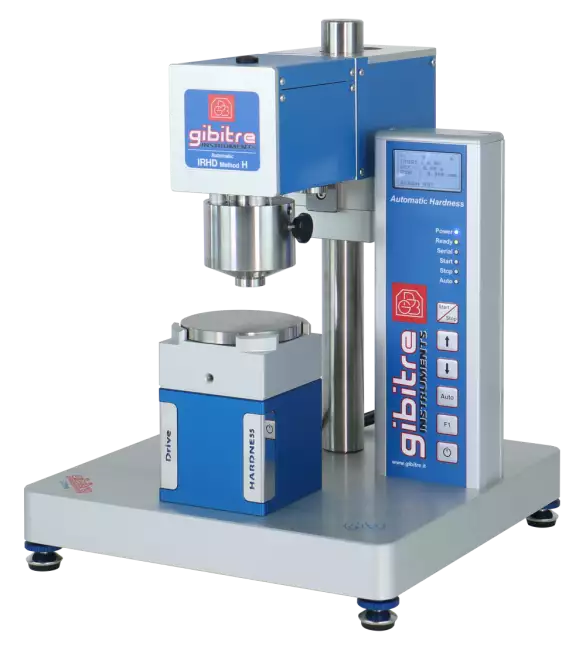

Automatic Hardness Check - Drive
The instruments 'Automatic Hardness Check - Drive' are designed for flexible configuration to meet customer-specific testing requirements.
The instrument features a motorized stand with a digital display, capable of supporting interchangeable measuring heads for various hardness scales.
To further customize your setup, software and sample holders tailored to specific testing needs can be added. The instrument allows for automatic performance of multiple tests at different points on the specimen. Its robust construction and high-quality components make it ideal for both research laboratories and production control environments.
Interchangeable measuring heads:
Shore A,
Shore D,
Shore A0,
Shore 00,
Shore AM (micro),
IRHD- Micro,
IRHD-Normal,
IRHD- Hard,
IRHD-Low,
VLRH (Very Low Rubber Hardness).
Why choose Automatic Hardness Check ?
• Motor-controlled displacement of the measuring head to ensure high repeatability of results
• Motor-controlled specimen rotation for automatic execution of multiple tests at different points.
• Digital display for immediate reading of results
• Full compliance with international standards
• ACCREDIA calibration certificate issued by Gibitre's ISO 17025 accredited laboratory

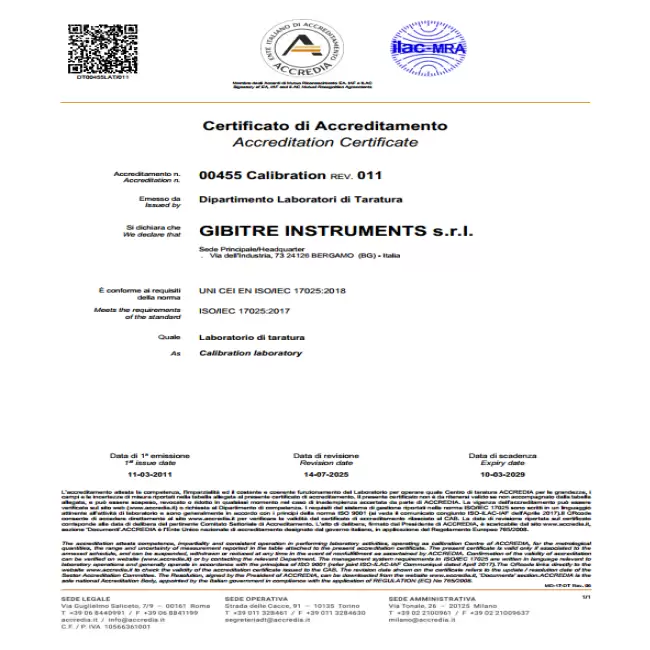

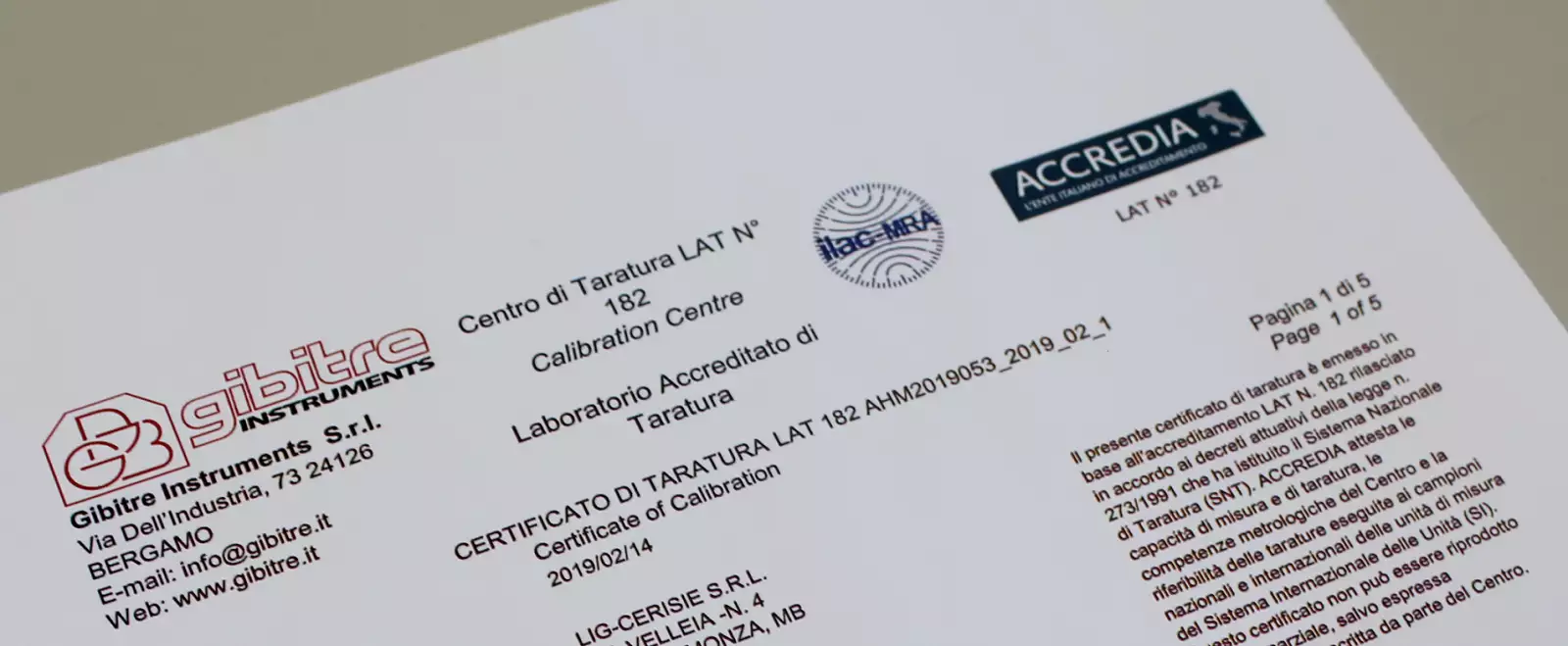

Accredia Calibration of the instrument
The instrument can be supplied with an ACCREDIA Calibration Certificate issued by the Accredia laboratory of Gibitre instruments.
The calibration is carried out according to the Technical Procedure approved by Accredia and in compliance with the requirements of the ISO 48-2 (IRHD), ISO 48-4 (Shore A) and ISO 868 (Shore D) standards.
The Calibration refers to:
• Dimensions of the Indentor and Annular foot
• Forces applied by the indentor and the annular foot
• Displacement of the indenter
• Duration of the test

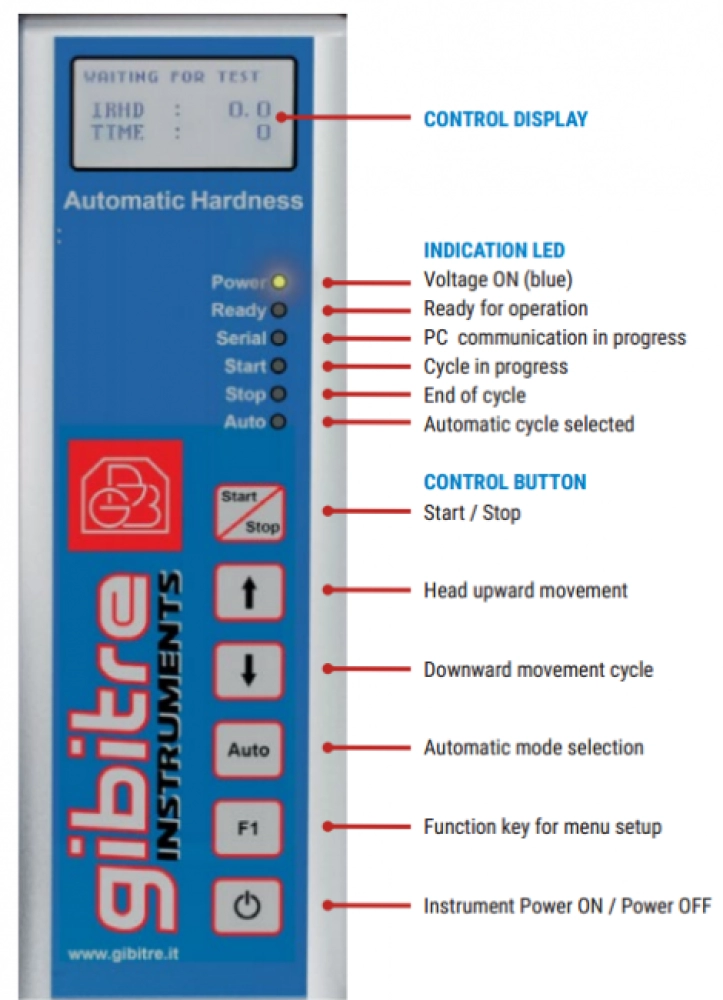

LCD Display
The LCD Display shows the hardness of the test being performed.
The keypad located in the front permits to control the status of the instrument and to perform basic operations (Start, Stop, up and down displacement of hardness unit, instrument setups, etc).

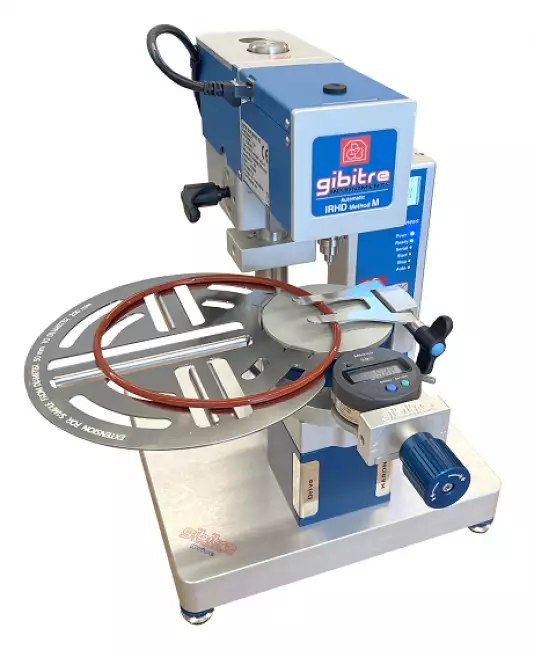

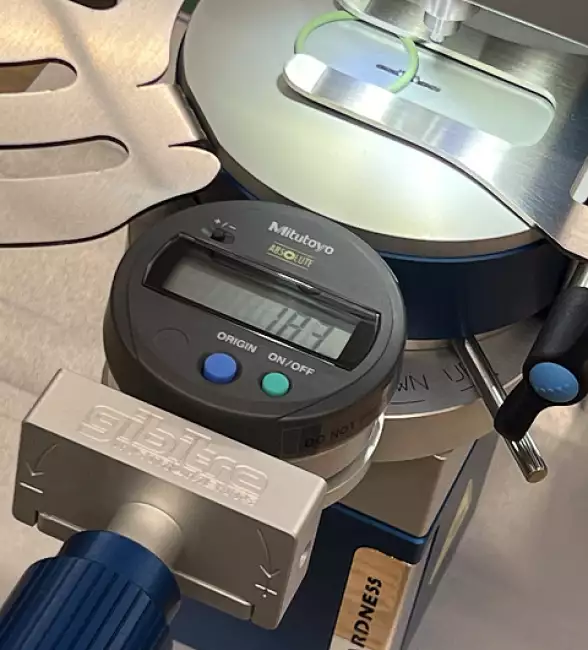

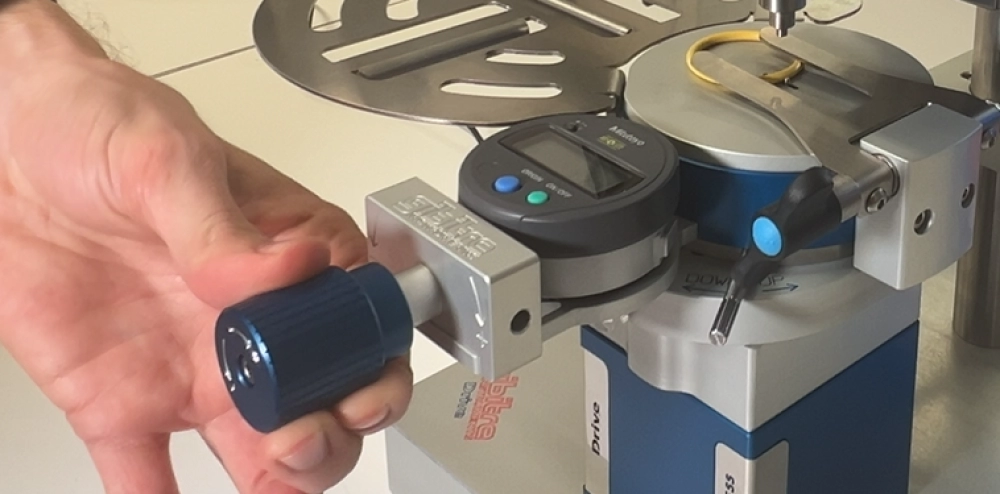

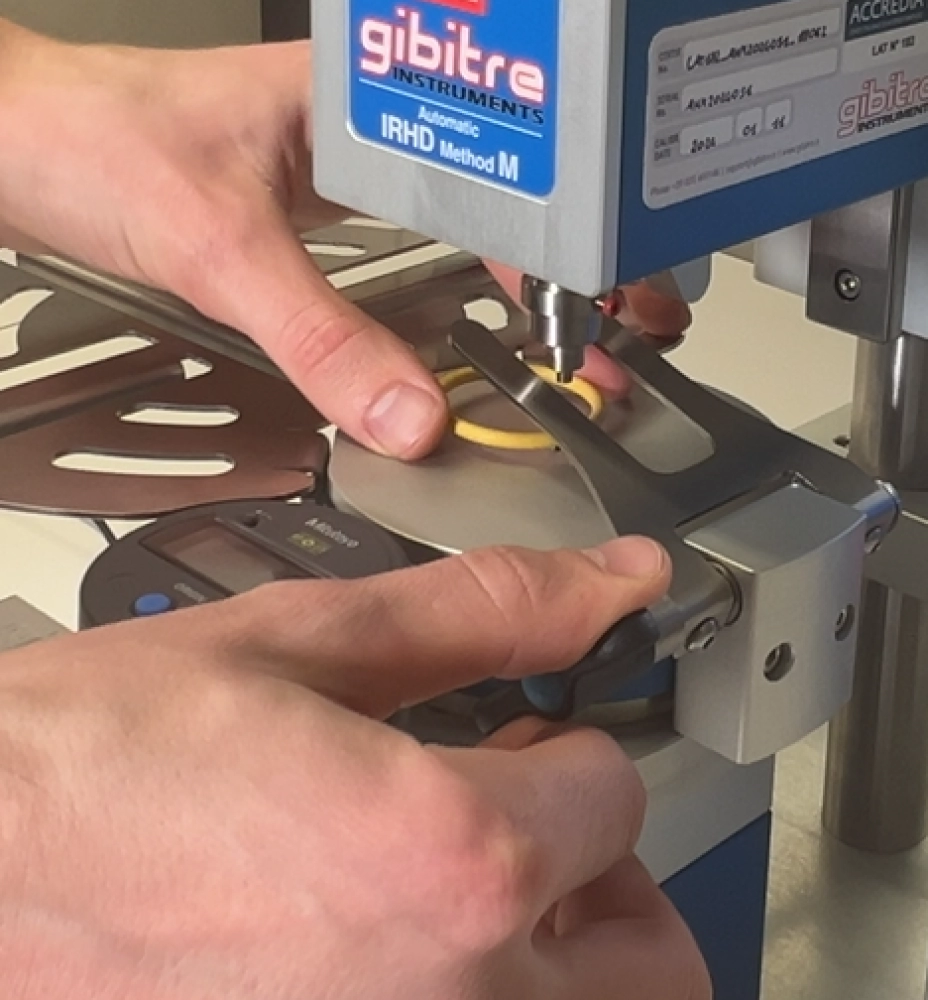

Universal Centring Device for O-Rings
The centering device allows for quick hardness testing on O-rings and technical articles with a chord length between 0.6 and 10 mm and an inner diameter of up to 200 mm. To conduct the test, the part is positioned between the two adjustable rods. The adjustment knob enables precise setting of the distance between the rods according to the chord size of the O-ring or workpiece.
This distance is displayed on the integrated centesimal dial indicator for accurate measurement. A retaining clip ensures proper positioning of curved workpieces during testing. The device attaches to the standard instrument plate via magnetic fastening, allowing for quick and easy installation and removal.

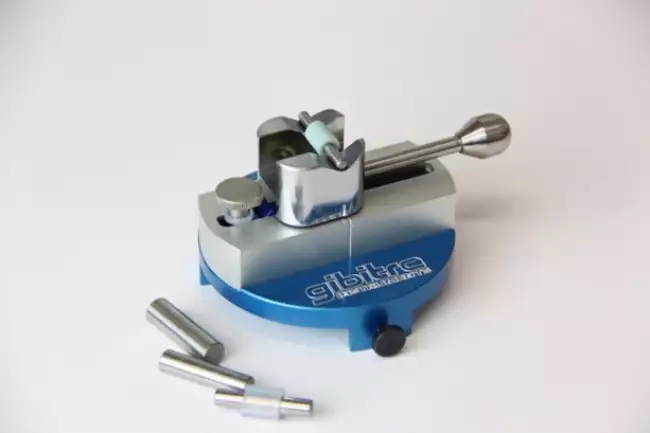

Centring Device for cylinders and Hoses
Cantering system for the measure of Micro-irhd hardness on the outer surface of rubber tubes with maximum external diameter 50 mm (other dimension on request).
No preparation of the sample to keep it flat is needed.
To perform a test, you simply need to place a piece of the hose on the device and press start.
Gibitre Hardness Software
The automatic durometer control through the Software Hardness-Check allows to exploit all the potential of the instruments:
• Perform multiple tests automatically on the specimen
• Save all test results in the SQL database
• Compare the results with the tolerance limits
• Produce test reports
The PC control software allows multiple instruments to be used simultaneously. Each instrument is connected to the PC via the supplied USB cable.

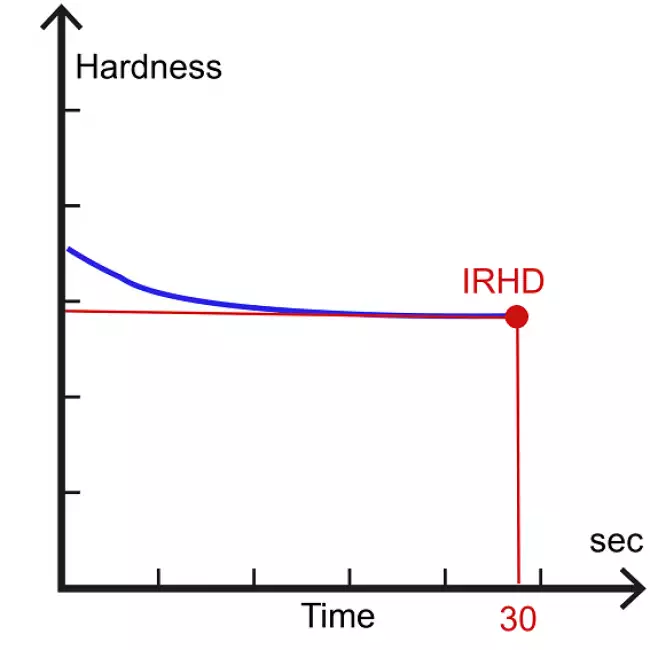

Calculated Results: IRHD Hardness
The software allows you to prepare customized test procedures that include all the calculations required by the standards and product specifications. The dedicated page describes all the available calculations.

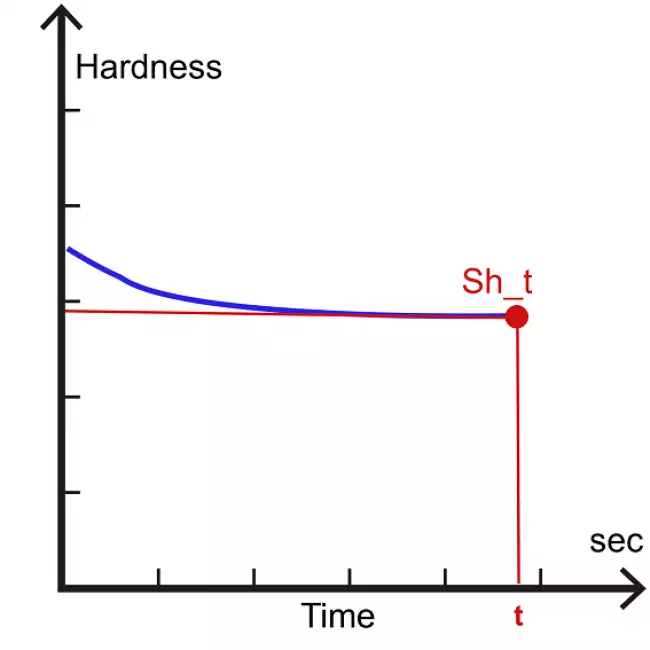

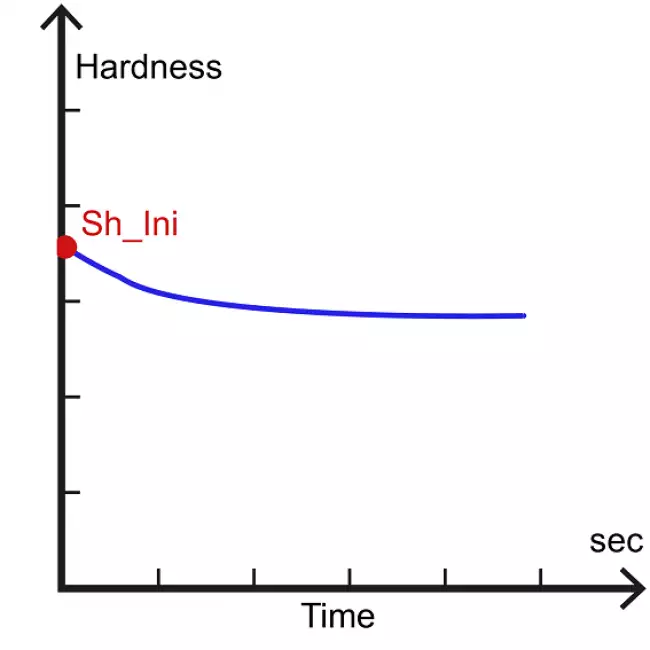

Calculated Results: SHORE Hardness
The software allows you to prepare customized test procedures that include all the calculations required by the standards and product specifications. The dedicated page describes all the available calculations.

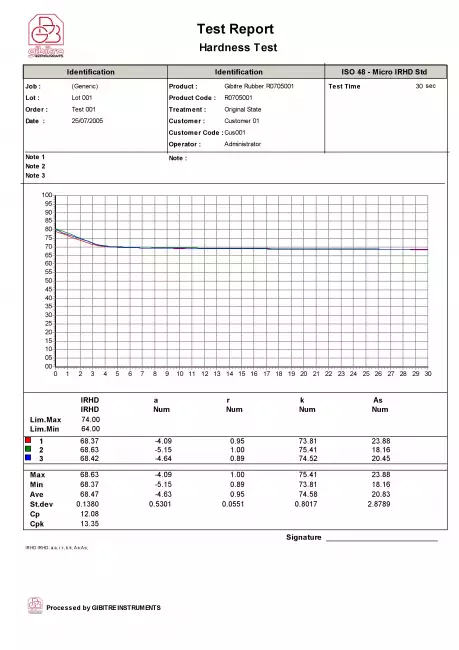

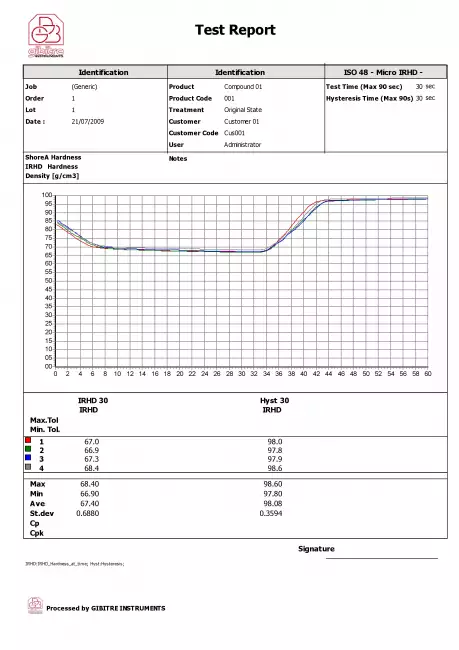

Test report
Can be printed or saved to pdf in one of the available languages. The format of the Test Report can be customized by the user.

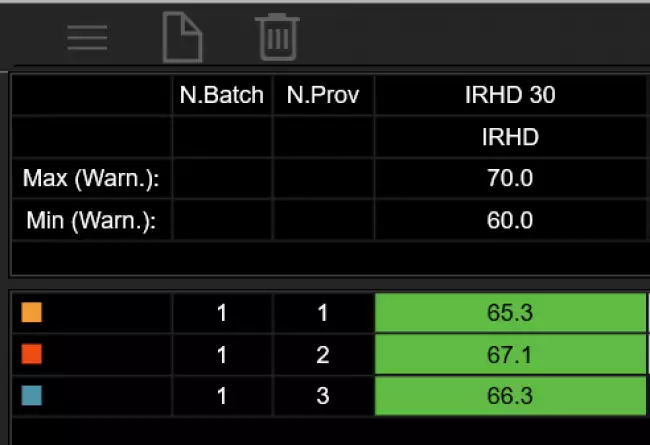

Tolerance Limits
The Datagest program allows you to define specific tolerance limits for each Product, Customer, Test Procedure and Aging Treatment.
For each result to be calculated, tolerance limits and alarm limits can be defined.
The comparison between the results and the tolerance limits is carried out automatically at the end of each test: the test results are colored (Green, Yellow or Red) based on the outcome of the comparison with the limits.
The outcome of the check is saved in the database together with the results.

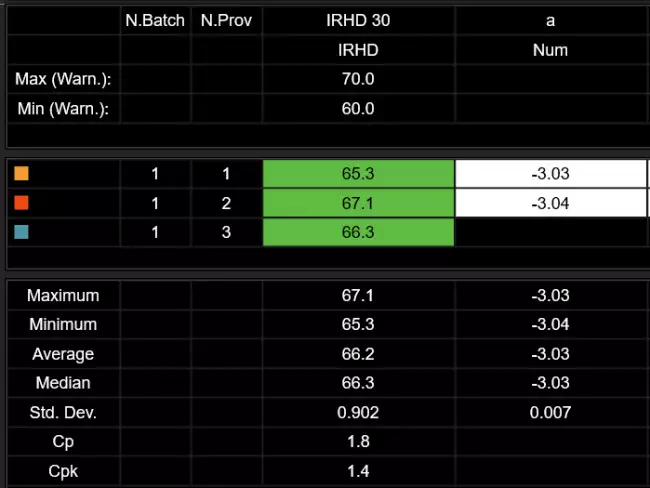

Statistics of ongoing tests
The programs automatically process the statistical analysis of the tests in progress by calculating:
• Maximum
• Minimum
• Average
• Median
• Standard deviation
• Cp
• Cpk
In addition, the Gaussian curve relative to the results is shown together with the tolerance limits to immediately highlight the progress of the tests in progress.
The Datagest program allows you to process more detailed statistics related to the saved results and to represent X and R Charts by grouping data by order, batch, batch, date, etc.
Management of Test Results
The results and test curves of all the tests carried out are saved in the Gibitre SQL database and are available through the Datagest program.
Datagest is the Laboratory Information Management System (LIMS) which is always installed in combination with all Gibitre instrument-control programs.
The program is the collector for all the test result produced with the instruments connected and permits to manage the common Archives used by the instruments (Product List, Customer List, Tolerance limits, Order List, etc)
Industry 4.0 integration
The instrument and the software have been specifically developed to optimize integration with other environments.
The database in SQL format and the Gibitre_Company_Connect program allows you synchronize your company management software with Gibitre database and to speed up the identification of the tests and to use bar-code readers or similar devices.

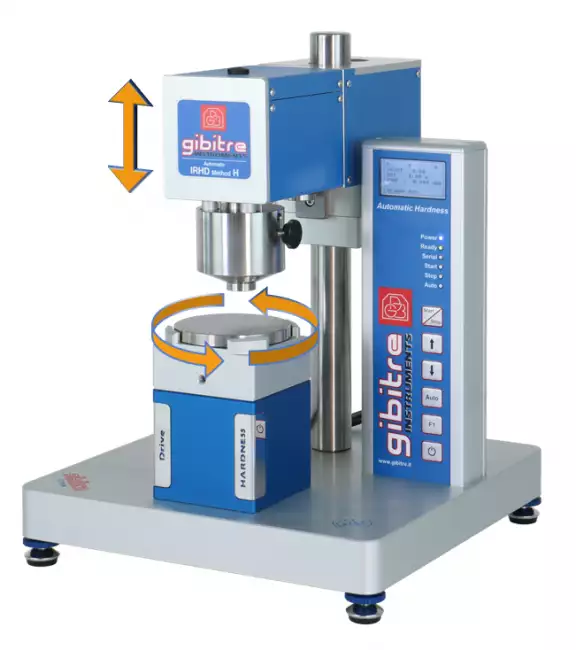

Automatic Sample displacement
• The motorized up-and-down movement of the measuring head enables automatic testing.
• The automatic rotation of the specimen holder plate allows tests to be performed automatically at different points on the specimen.
• The operator can set the number of tests to be performed automatically on the specimen and the angle of rotation between successive tests.
Accredia Calibration of the instrument
The instrument can be supplied with an ACCREDIA calibration certificate issued by the Accredia laboratory of Gibitre instruments.
The calibration is carried out according to the Technical Procedure approved by Accredia and in compliance with the requirements of the ISO 48-2 (IRHD), ISO 48-4 (Shore A) and ISO 868 (Shore D) standards.
The Calibration refers to:
• Dimensions of the Indentor and Annular foot
• Forces applied by the indentor and the annular foot
• Displacement of the indenter
• Duration of the test
Standard Calibration service for IRHD Hardness Tester
The calibration is performed with reference to the requirements of ISO 48-2 standard.
The service includes:
• Ordinary maintenance of the instrument
• Visual inspection of the Indentor.
• Calibration of the Pre-Load, of the Main Load and of the weight of the Anular foot.
• Calibration of the force application time for Pre-Load and Main-Load (NEW)
• Calibration of the displacement of the indentor in correspondence with several IRHD Hardness readings
• Pre-calibration and Post-Calibration test of the instrument with reference test samples (NEW)
• Issue and e-mail shipment of the Calibration Certificate with traceability to primary standards.
Standard Calibration service for a SHORE Hardness Tester
The calibration is performed with reference to the requirements of ISO 48-4 standard.
The service includes:
• Ordinary maintenance of the instrument
• Visual inspection of the Indentor.
• Calibration of the total run of the indentor (readings at 0 and 100 Shore points).
• Calibration of the displacement of the indentor and of the force applied by the indentor in correspondence with several Shore readings (20, 40, 50, 60, 80, 90 Shore).
• Calibration of the force application time (NEW)
• Issue and e-mail shipment of the Calibration Certificate with traceability to primary standards.
Hardware requirements
• Programs can be installed on standard PCs with WINDOWS 10 or 11 OPERATING SYSTEM.
• The CONNECTION between the instruments and the PC is made using the USB CABLE supplied with the instrument.
• The programs are COMPATIBLE WITH ANTIVIRUS, and other programs installed on the PC.
Language Selection
All the programs produced by Gibitre are multi-language and allow the operator to select the language of use.
The test report can be produced in the desired language regardless of the language of use of the program.
The languages available at the moment are: Italian, English, German, French, Portuguese, Russian, Chinese, Japanese, Turkish, Polish, Czech
Development and production
The instrument is totally developed and produced in the plant of Gibitre Instruments in Italy.
All the mechanical parts are produced in the company workshop using modern CNC machines.
Components and sensors from well-known brands are selected in order to ensure the maximum reliability in the measures
Internal trained personnel takes care of all the production stages: assembly, start-up, calibration, packing, shipment and installation.
Instrument Characteristics
Available hardness types
Shore: (A, D, 00, M)
IRHD: (Micro, Normal, Hard, Low, VLRH)
IRHD: (Micro, Normal, Hard, Low, VLRH)
Test modality
Fully automatic test in different points of the same sample
Resolution
0.01 Hardness point
Maximum Sample Thickness
100 mm
Integrated Digital Display
Allows complete control of the instrument and display of results
Optional Software
Software for the complete control of the instrument compatible with Windows 10 and 11.
Software
Test results calculated for each test
Shore units: Initial hardness, hardness values after set test times
IRHD/micro IRHD: Hardness at 30 sec (and at set test times), Angle Coeff. of Hardness Vs Time curve, Hysteresis after load removal.
IRHD/micro IRHD: Hardness at 30 sec (and at set test times), Angle Coeff. of Hardness Vs Time curve, Hysteresis after load removal.
Results storage
The test result sand the curves are stored in the SQL Gibitre database which is installed in combination with the software

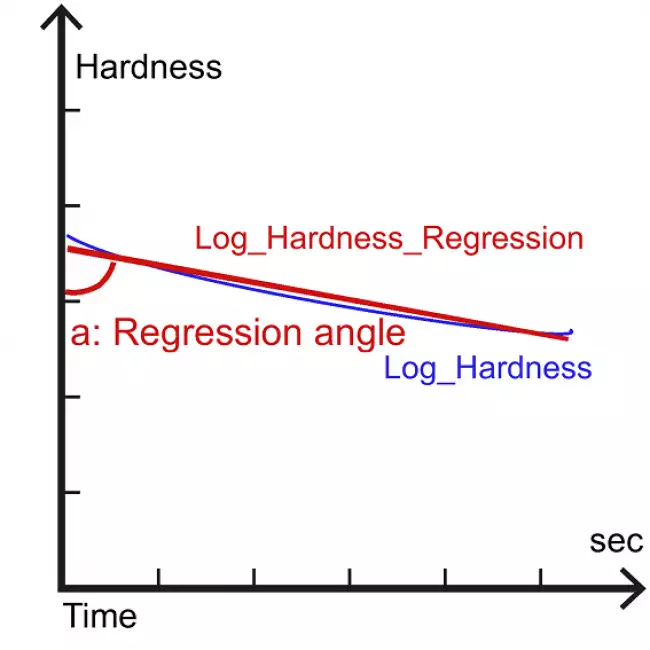

Regression curve analysis
Angle coefficient of Regression curve

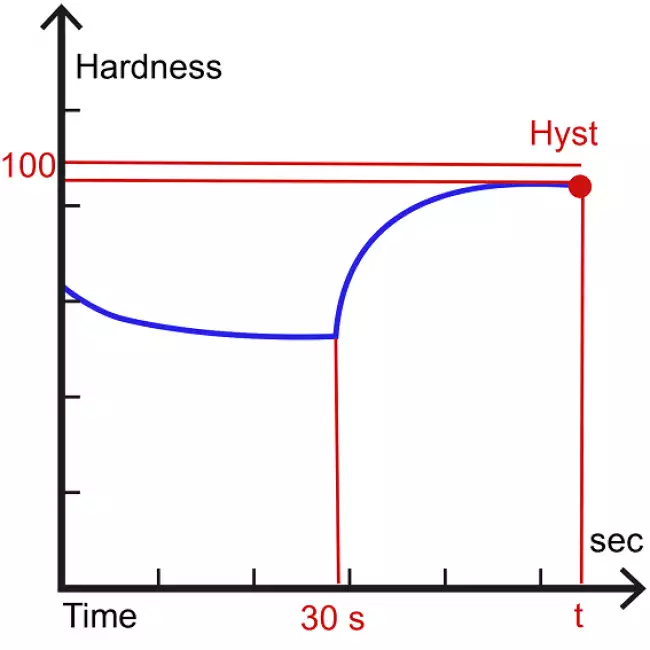

Hysteresis analysis (irhd tests)
% recovery after set time after main force removal
Data analysis
Mean, std. Dev., min, max, Cp, Cpk of test results. X-Chart and Gaussian distribution
Graphs
Rubber Relaxation curve (hardness
versus test time) in linear and logarithmics axes
versus test time) in linear and logarithmics axes
Control of the instrument with Digital Display
Display Characteristics
The Touch-screen display permit to start and stop the automatic execution of the test and to display the hardness reading
Safety Devices
Labelling
CE Labelling
Calibration
Accredited Calibration (optional)
ACCREDIA calibration Certificate issued by Gibitre Instruments ISO 17025-Accredited Laboratory
Standard Calibration
Calibration Report conforming to ISO 48-2 (IRHD units) or ISO 48-4 (Shore Units) with traceability to primary references
Technical specifications
Power supply
110-240 V, 50/60 Hz, 15 W, single phase
Dimensions
(W x D x H) 280 x 280 x 400 mm
Weight
20 Kg
Personal Computer (optional)
Personal Computer (optional)
Minimum Configuration: Intel Core i5 4 GB RAM.
Compatible Operating Systems: Windows 10 and 11;
Connection to the instrument via USB Cable (included)
Compatible Operating Systems: Windows 10 and 11;
Connection to the instrument via USB Cable (included)
Type of Hardness units
SHORE UNITS
Shore A
Standards: ISO 48-4, ASTM D2240
Application: Soft Rubber, Plastics, Elastomers
Sample standard thickness: 6 mm
Application: Soft Rubber, Plastics, Elastomers
Sample standard thickness: 6 mm
Shore A
Indentor Force: 8.05 N (at 100 Shore)
Contact force: 1000 g
Indentation: 2.5 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore
Contact force: 1000 g
Indentation: 2.5 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore

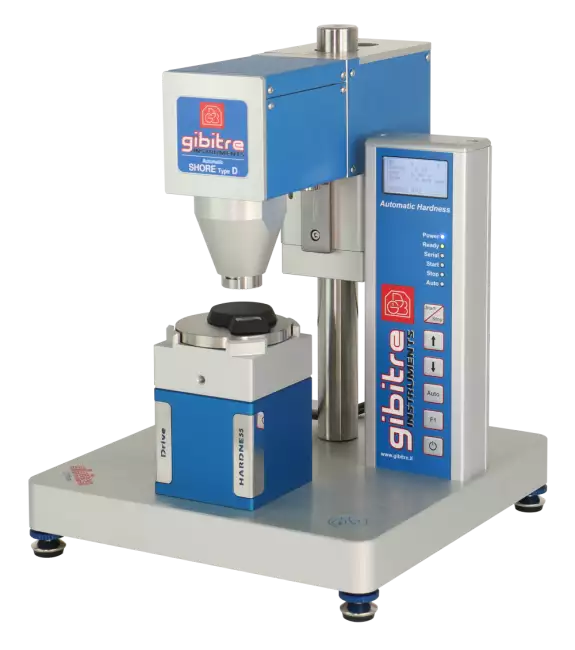

Shore D
Standards: ISO 48-4, ASTM D2240, ISO 868
Application: Hard Rubber, Thermoplastics
Sample standard thickness: 6 mm
Application: Hard Rubber, Thermoplastics
Sample standard thickness: 6 mm
Shore D
Indentor Force: 44.5 N (at 100 Shore)
Contact force: 5000 g
Indentation: 2.5 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore
Contact force: 5000 g
Indentation: 2.5 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore
Shore A0
Standards: ISO 48-4
Application: Light Foams, Sponge Rubber, Gels, Human Tissue
Sample thickness: 6 mm
Application: Light Foams, Sponge Rubber, Gels, Human Tissue
Sample thickness: 6 mm
Shore A0
Indentor Force: 8.05 N (at 100 Shore)
Contact force: 1000 g
Indentation: 2.5 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore
Contact force: 1000 g
Indentation: 2.5 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore

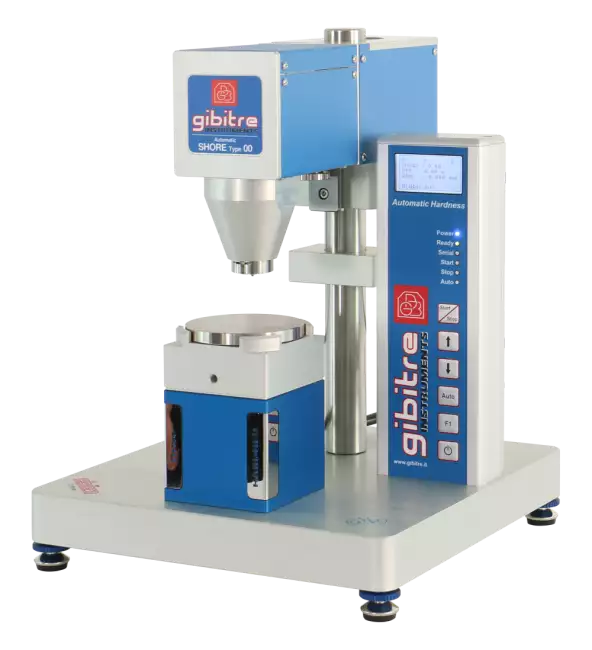

Shore 00
Standards: ASTM D2240
Application: Light Foams, Sponge Rubber, Gels, Human Tissue
Sample thickness: 6 mm
Application: Light Foams, Sponge Rubber, Gels, Human Tissue
Sample thickness: 6 mm
Shore 00
Indentor Force: 1.111 N (at 100 Shore)
Contact force: 400 g
Indentation: 2.5 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore
Contact force: 400 g
Indentation: 2.5 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore

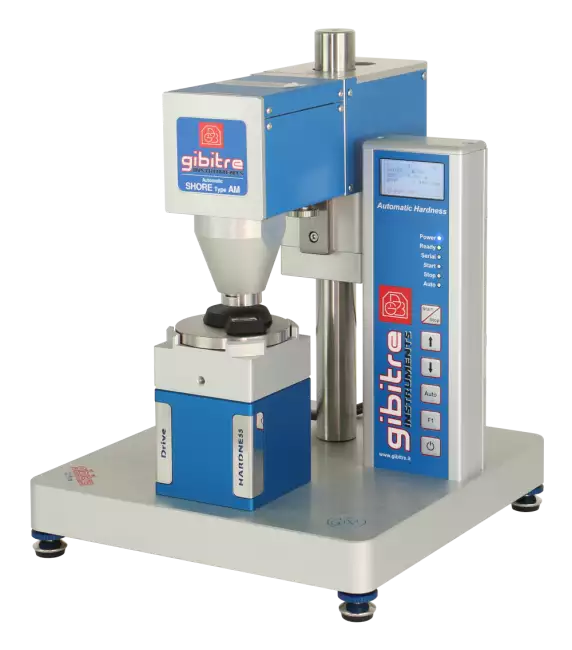

Shore AM
Standards: ISO 48-4, ASTM D2240
Application: Small Technical Articles, O-rings
Sample thickness: 1.5-6 mm
Application: Small Technical Articles, O-rings
Sample thickness: 1.5-6 mm
Shore AM
Indentor Force: 0.76 N (at 100 Shore)
Contact force: 250 g
Indentation: 1.25 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore
Contact force: 250 g
Indentation: 1.25 mm
Measurement Range: 0-100 Shore
Resolution: 0.01 Shore
IRHD UNITS
IRHD-M (MICRO)
Standards: ISO 48-2, ASTM D1415
Application: Small Technical Articles, O-rings
Sample thickness: 1-5 mm
Application: Small Technical Articles, O-rings
Sample thickness: 1-5 mm
IRHD-M (MICRO)
Pre-Load: 8.3 mN
Total Load: 153.3 mN
Anular Foot: 235 mN
Indentation: 0.3 mm
Measurement Range: 30-100 irhd
Resolution: 0.01 irhd
Total Load: 153.3 mN
Anular Foot: 235 mN
Indentation: 0.3 mm
Measurement Range: 30-100 irhd
Resolution: 0.01 irhd
IRHD-N (NORMAL)
Standards: ISO 48-2, ASTM D1415
Application: Rubber Parts with Hardness >30 irhd
Sample thickness: 8-10 mm
Application: Rubber Parts with Hardness >30 irhd
Sample thickness: 8-10 mm
IRHD-N (NORMAL)
Indentor Diamater: 2.5 mm
Pre-Load: 0.3 N
Total Load: 5.7 N
Anular Foot: 8.3 N
Indentation: 1.8 mm
Measurement Range: 30-85 irhd
Resolution: 0.01 irhd
Pre-Load: 0.3 N
Total Load: 5.7 N
Anular Foot: 8.3 N
Indentation: 1.8 mm
Measurement Range: 30-85 irhd
Resolution: 0.01 irhd
IRHD-H (HIGH HARDNESS)
Standards: ISO 48-2, ASTM D1415
Application: Hard Rubber Parts with Hardness >85 irhd
Sample thickness: 8-10 mm
Application: Hard Rubber Parts with Hardness >85 irhd
Sample thickness: 8-10 mm
IRHD-H (HIGH HARDNESS)
Indentor Diamater: 1.0 mm
Pre-Load: 0.3 N
Total Load: 5.7 N
Anular Foot: 8.3 N
Indentation: 0.44 mm
Measurement Range: 85-100 irhd
Resolution: 0.01 irhd
Pre-Load: 0.3 N
Total Load: 5.7 N
Anular Foot: 8.3 N
Indentation: 0.44 mm
Measurement Range: 85-100 irhd
Resolution: 0.01 irhd
IRHD-L (LOW HARDNESS)
Standards: ISO 48-2, ASTM D1415
Application: Soft Rubber Parts with Hardness <35 irhd
Sample thickness: 8-10 mm
Application: Soft Rubber Parts with Hardness <35 irhd
Sample thickness: 8-10 mm
IRHD-L (LOW HARDNESS)
Indentor Diamater: 1.0 mm
Pre-Load: 0.3 N
Total Load: 5.7 N
Anular Foot: 8.3 N
Indentation: 0.09-1.1 mm
Measurement Range: 10-35 irhd
Resolution: 0.01 irhd
Pre-Load: 0.3 N
Total Load: 5.7 N
Anular Foot: 8.3 N
Indentation: 0.09-1.1 mm
Measurement Range: 10-35 irhd
Resolution: 0.01 irhd
VLRH (Very Low Rubber Hardness)
Standards: ISO 48-3
Application: Soft Rubber Parts with Hardness <35 irhd
Sample thickness: 6 mm
Application: Soft Rubber Parts with Hardness <35 irhd
Sample thickness: 6 mm
VLRH
Indentor Diamater: 2.5 mm
Pre-Load: 8.3 mN
Total Load: 100 mN
Anular Foot: 235 mN
Indentation: 1000 µm
Measurement Range: 0-100 VLRH
Resolution: 0.01 VLRH
Pre-Load: 8.3 mN
Total Load: 100 mN
Anular Foot: 235 mN
Indentation: 1000 µm
Measurement Range: 0-100 VLRH
Resolution: 0.01 VLRH
Gibitre Instruments
Via dell'industria, 18
Bergamo (Italy)
te. +39 035 461146
www.gibitre.it
info@gibitre.it
Copyright Gibitre Instruments
