Flammability Check
Stainless Steel Cabinet for performing flammability tests of plastic materials, foams and rubber
Standards the instrument complies with:

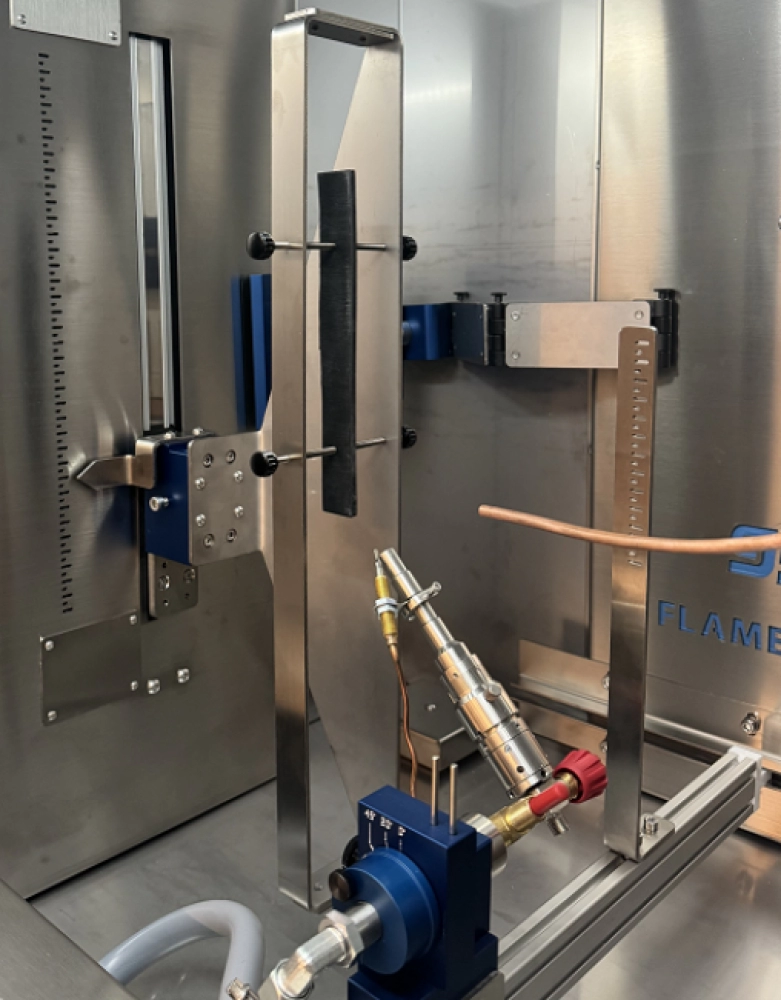

ASTM D635; ASTM D3801; ASTM D4804; ASTM D4986; ASTM D5048; IEC 60695-11-10; ISO 340; ISO 1210; ISO 8030; ISO 9772; ISO 9773; UL 94; VDE VDE 0471-11-11;
ASTM D635; ASTM D3801; ASTM D4804; ASTM D4986; ASTM D5048; IEC 60695-11-10; ISO 340; ISO 1210; ISO 8030; ISO 9772; ISO 9773; UL 94; VDE VDE 0471-11-11;
Key Features
Instrument for flame resistance test according to UL 94 standard fitted with:
• Stainless steel cabinet with tempered glass viewing window and interior light
• Bunsen burner according to ASTM D5025 standard
• Flow meter for gas flow regulation
• Support for flame angle set (0°, 20°, 45°)
• Slide for the regulation of the position of the flame
• Sample holder according to the standards with sample position regulation
• Digital thermometer for the measurement of the temperature of the flame integrated in the instrument
• Digital Timer with 0.1 second resolution for the measurement of test time
• Exhaust fan to remove combustion fumes

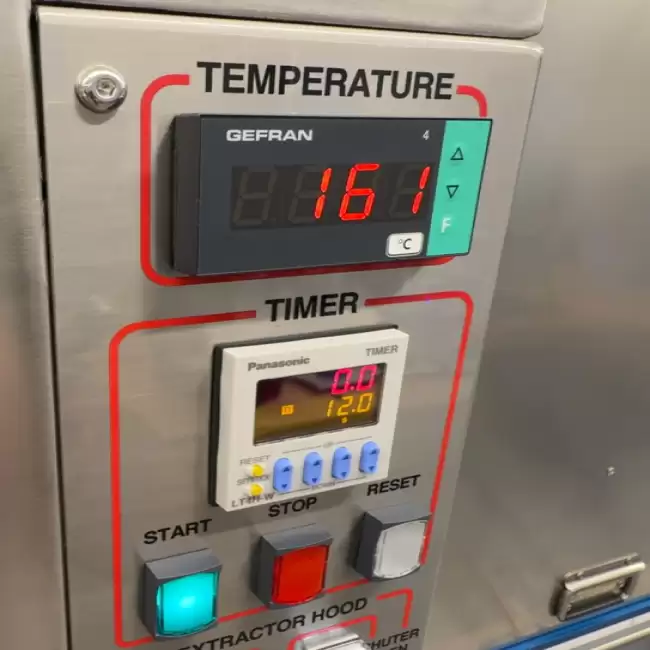

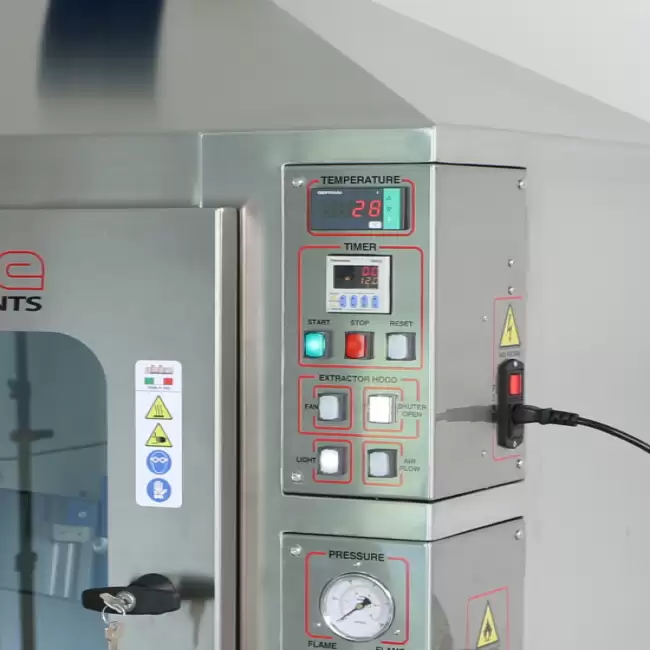

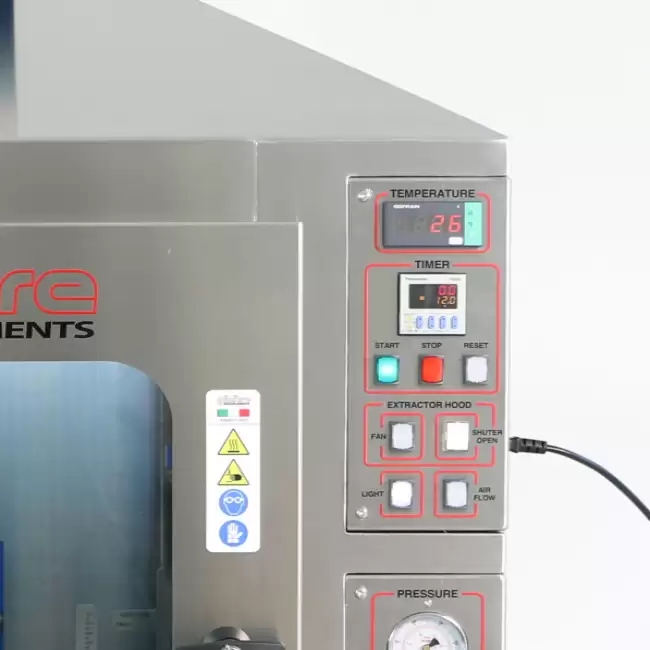

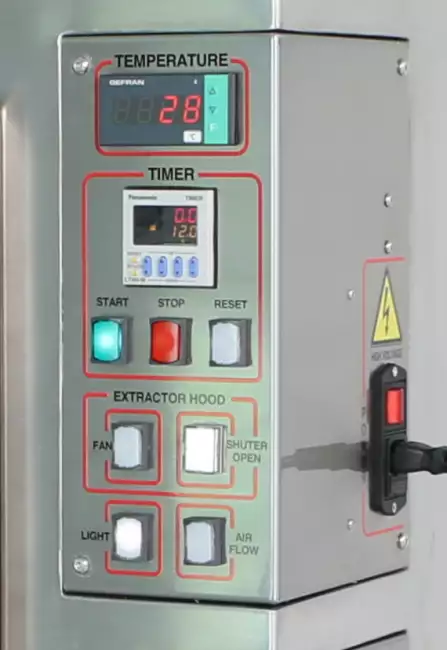

Control Panel
The control panel includes:
• Digital reading of the temperature of the flame
• Timer for the measure of test time
• Button for Start / Stop button for the Timer
• Button for Reset of the Timer
• Button for activation of internal light
• Button for activation of fume aspiration

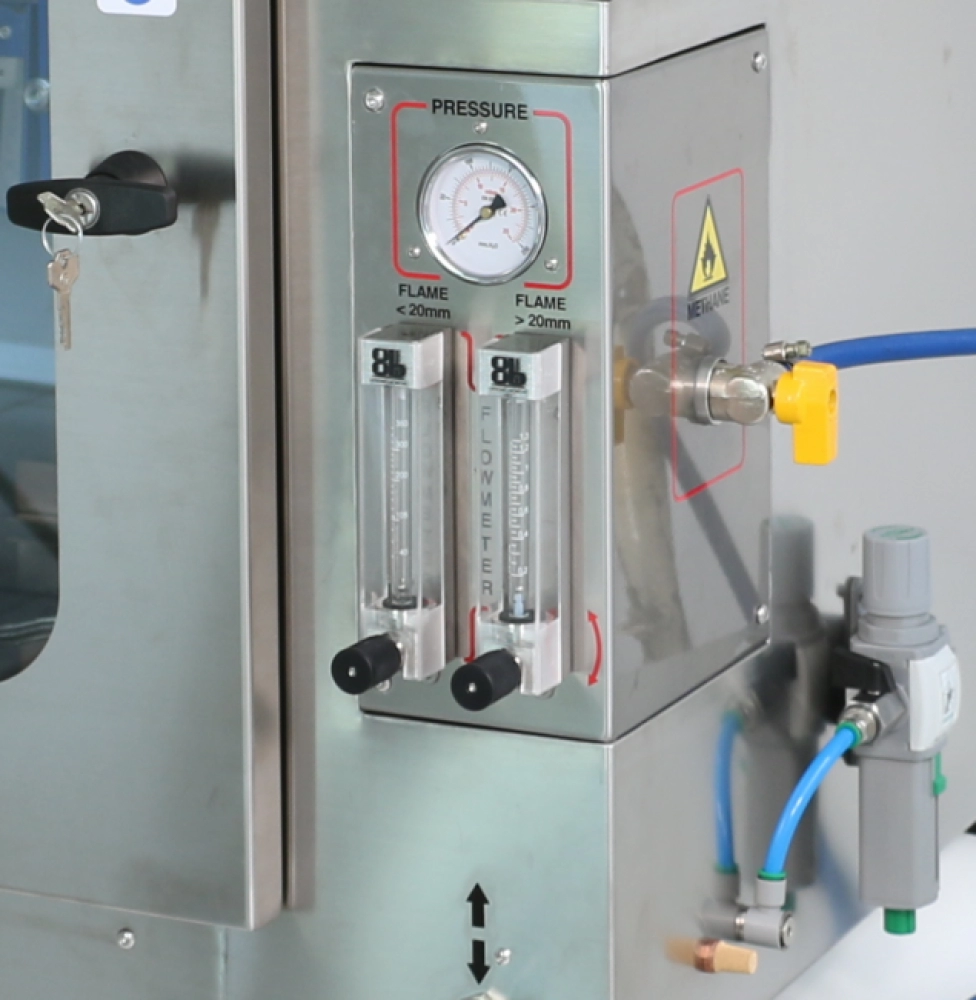

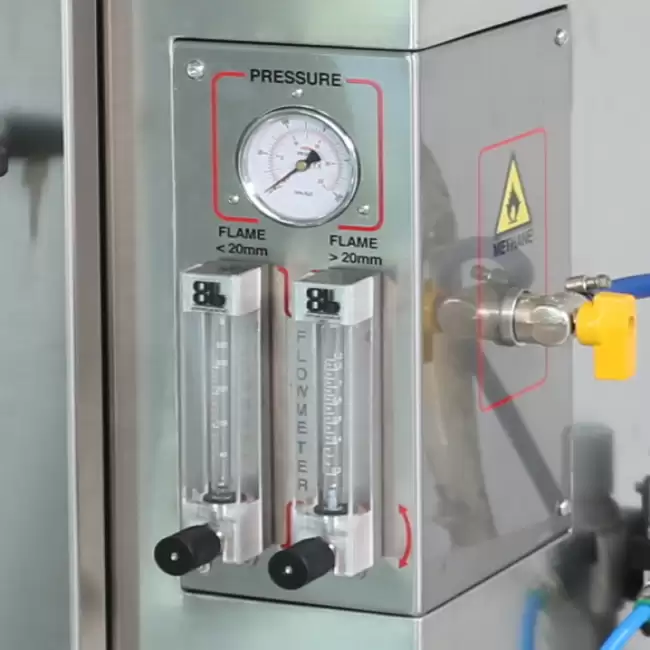

Gas Flow Adjustment
The instrument must be connected to a Methan source.
The instrument is equipped with:
• Manometer between between 0 and 25 mBar
• Fluxometer between 0,04-0,36 NL\min with flow regulation knob
• Fluxometer between 0,2-1,3 NL\min with flow regulation knob

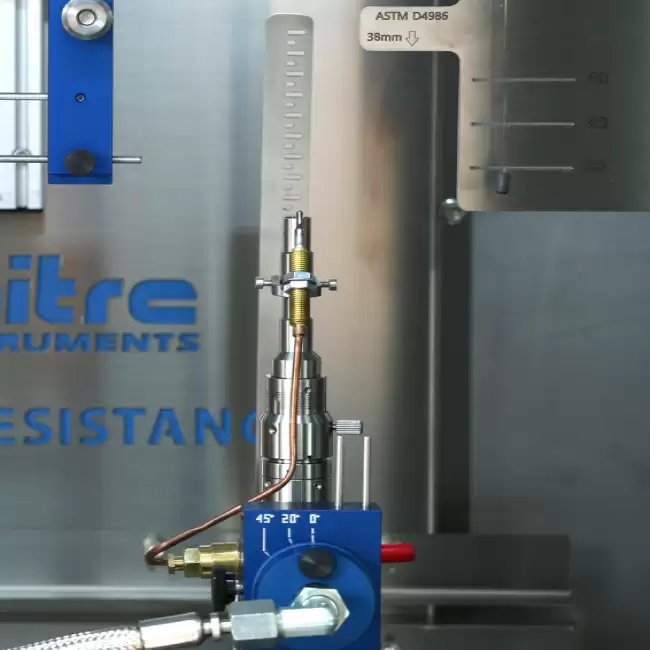

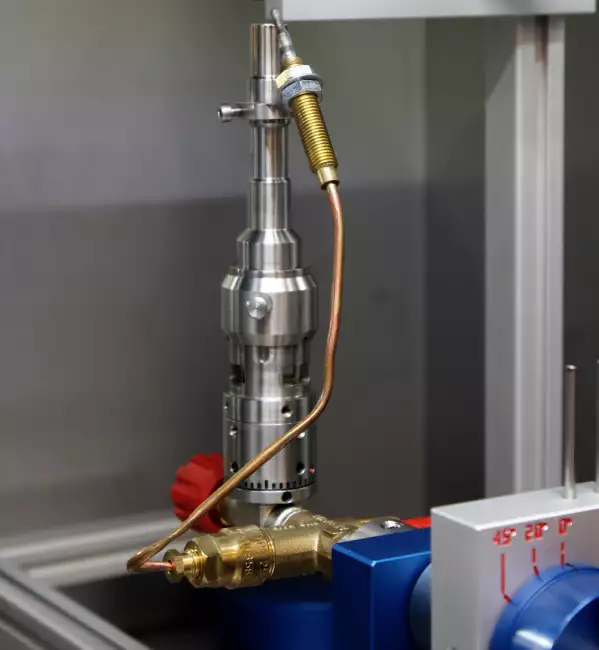

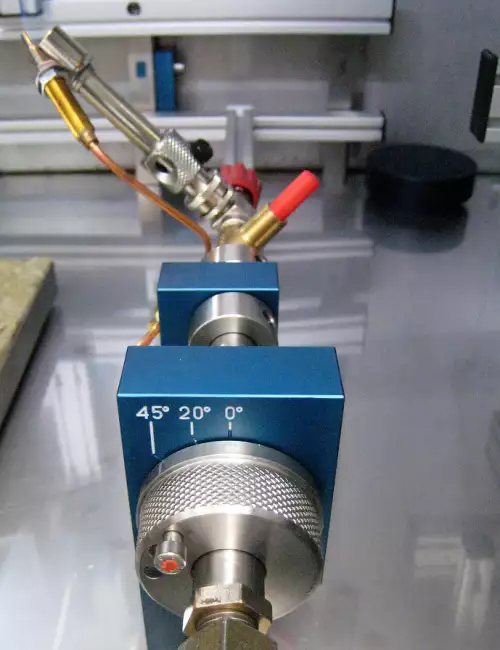

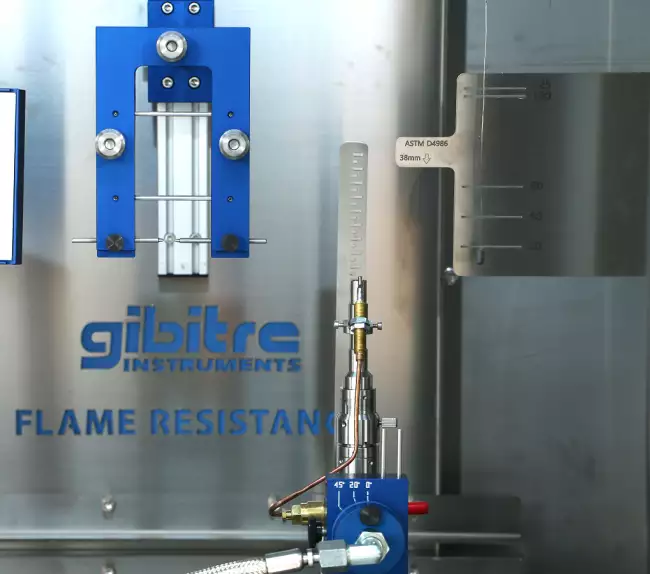

Bunsen Burner
Bunsen burner compliant with ASTM D5025 and CEI IEC 60695-11-4 standards equipped with:
• Safety sensor for interruption of gas flow with flame absent
• Ring for the adjustment of the air / gas mix
• Tiltable support for testing with inclined flame (0 °, 20 °, 45 °)

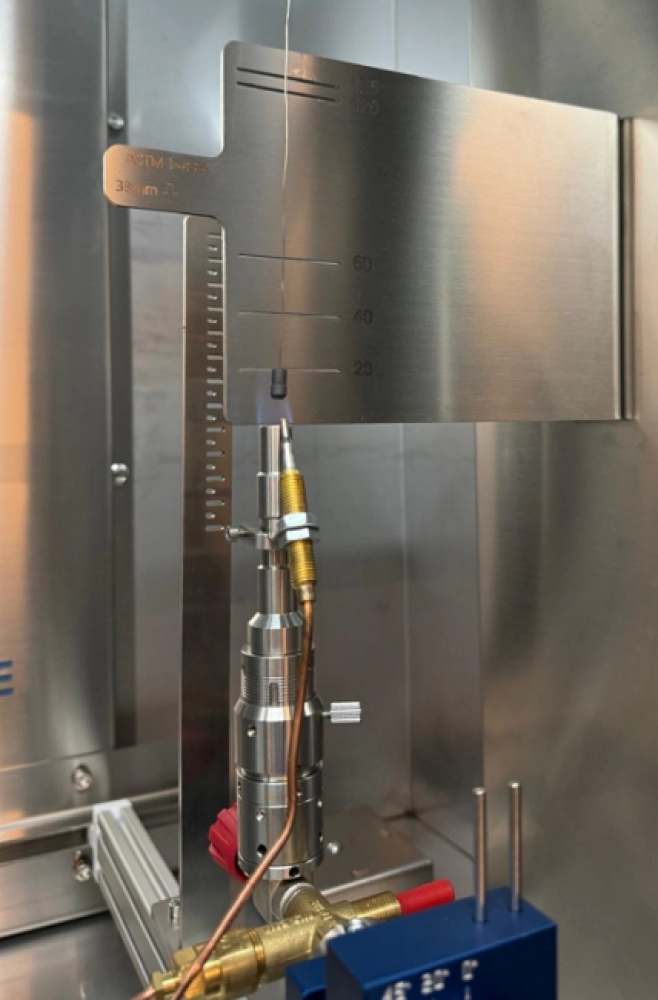

Temperature Calibration
The instrument is supplied with:
• Internal Thermometer with thermocouple for 20 mm Test Flame according to ASTM D 5207 standard.
• Ruler for the check of the height of the flame.
The Thermocuple and the ruler are installed inside the chamber.
To test the temperature of the flame, you only need to move the burner under the Thermocouple using the movement knob.

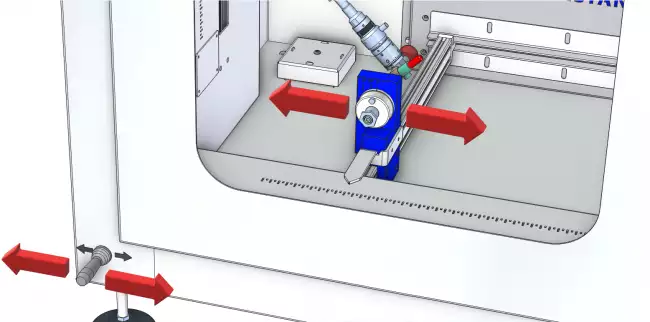

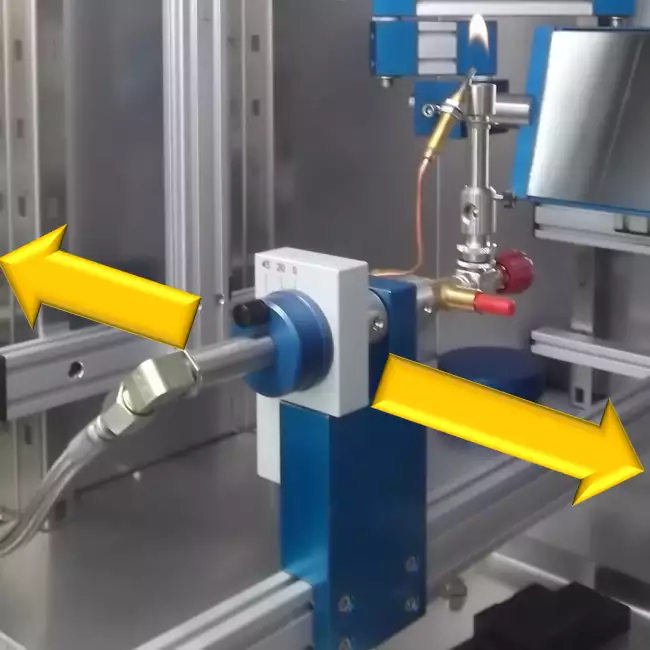

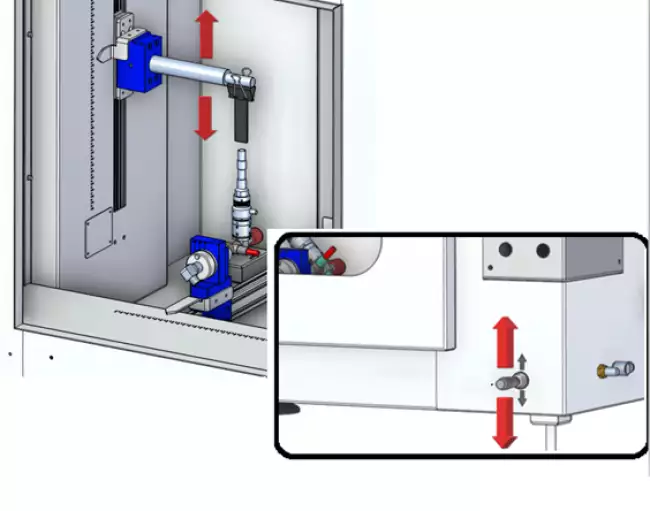

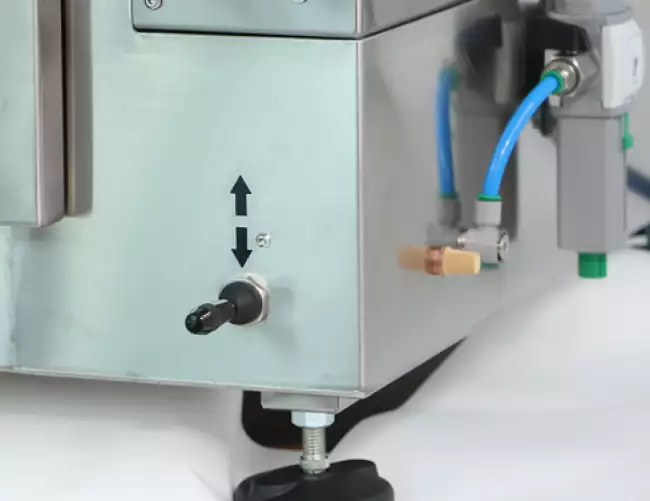

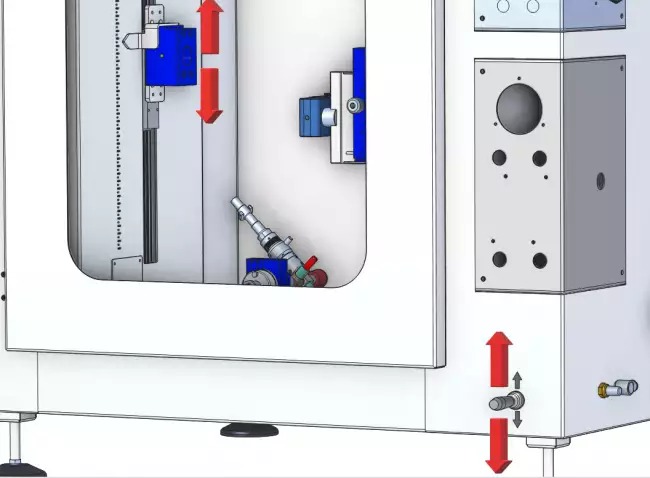

Device for moving the burner in the chamber

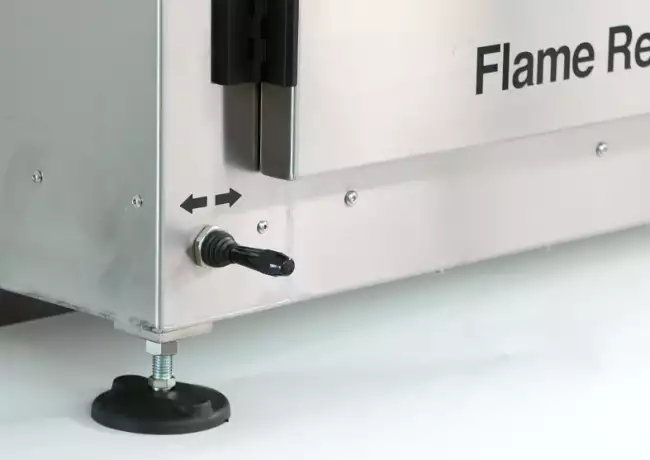

The knob located outside the Cabin allows you to operate the slide and move the burner horizontally inside the chamber.

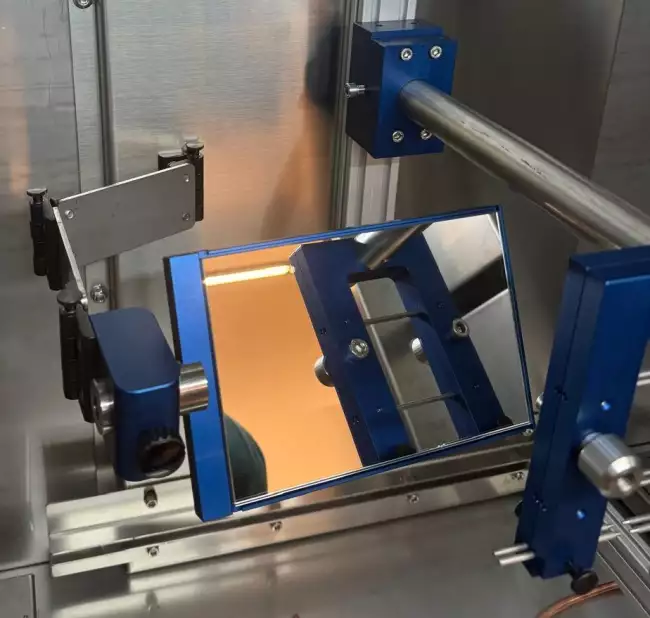

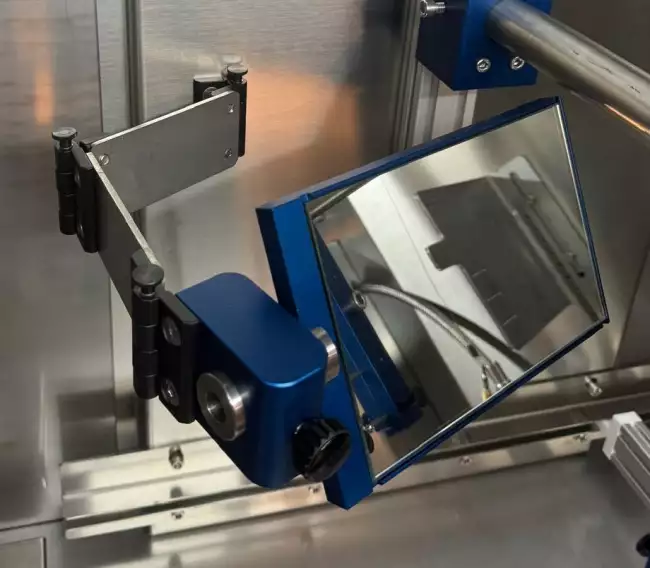

The device allows the operator to perfectly control the position of the flame under the specimen through the inspection window.

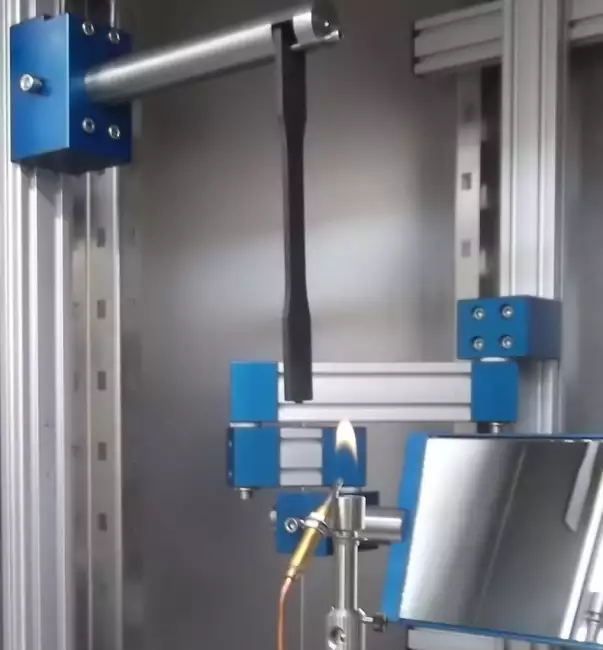

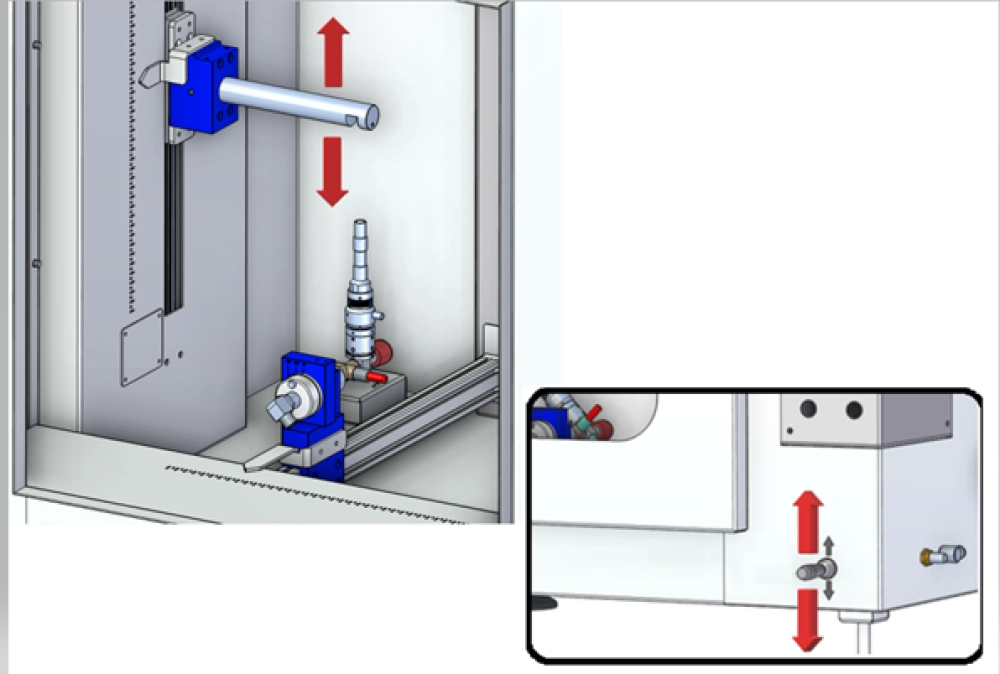

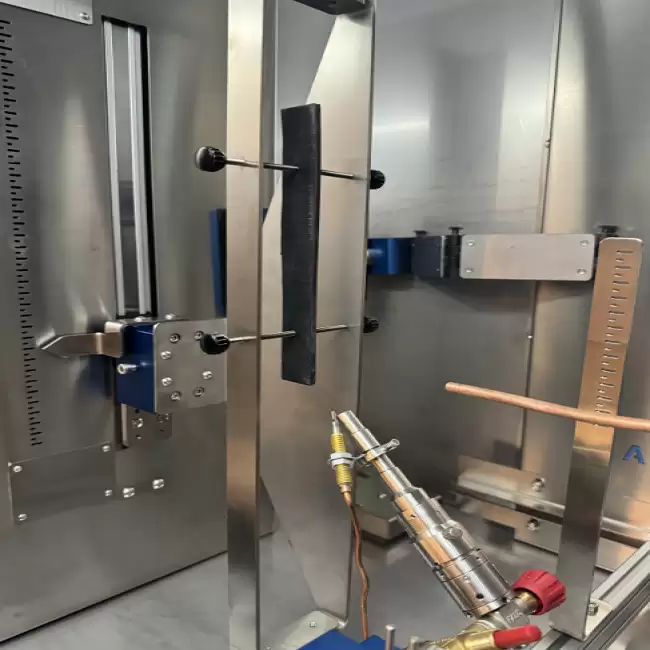

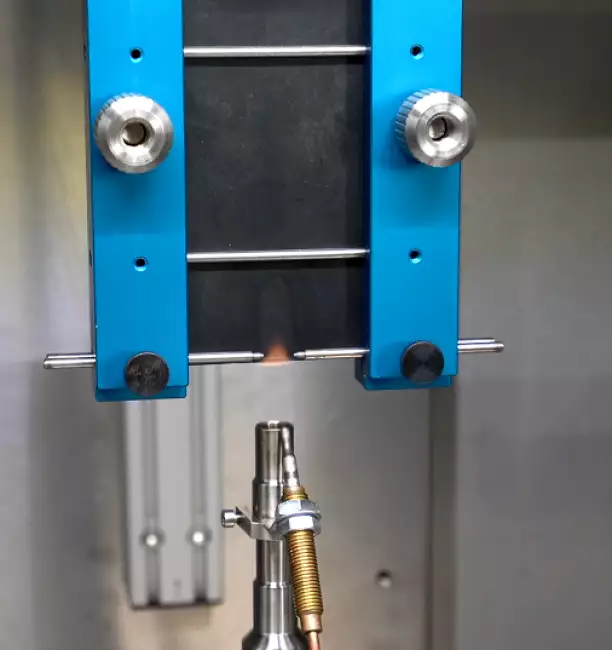

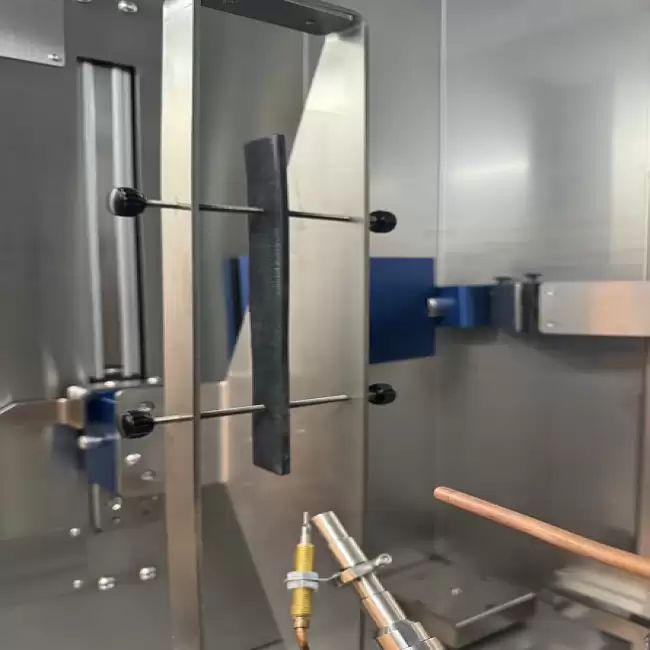

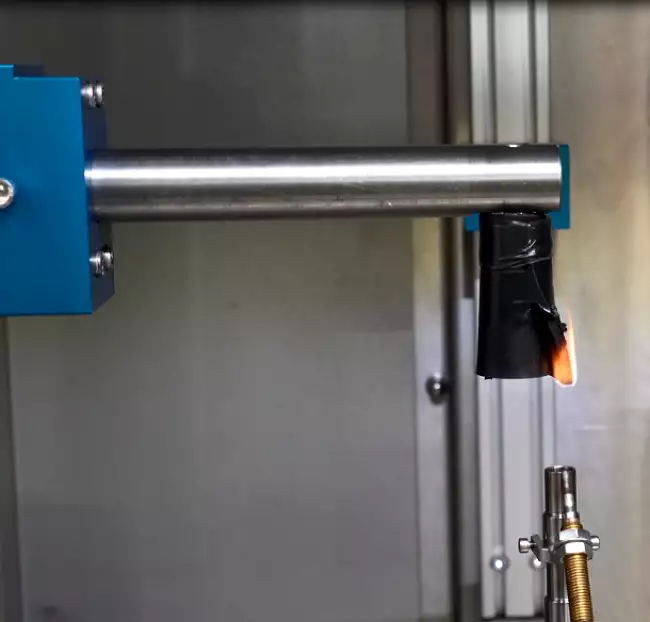

Test with Vertical Sample

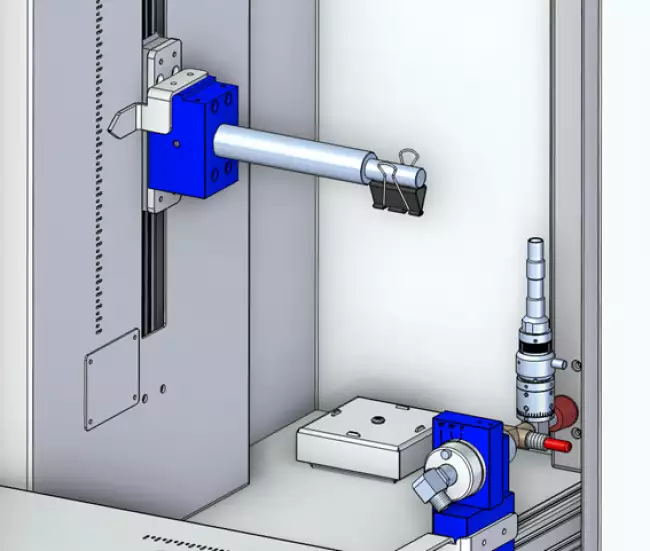

• Specimen support for Vertical Burning of Non-rigid Solid Plastics (MVB) test conforming to UL 94 (tests VTM-0, VTM-1 and VTM- 2), ASTM D 4804 and equivalent standards.

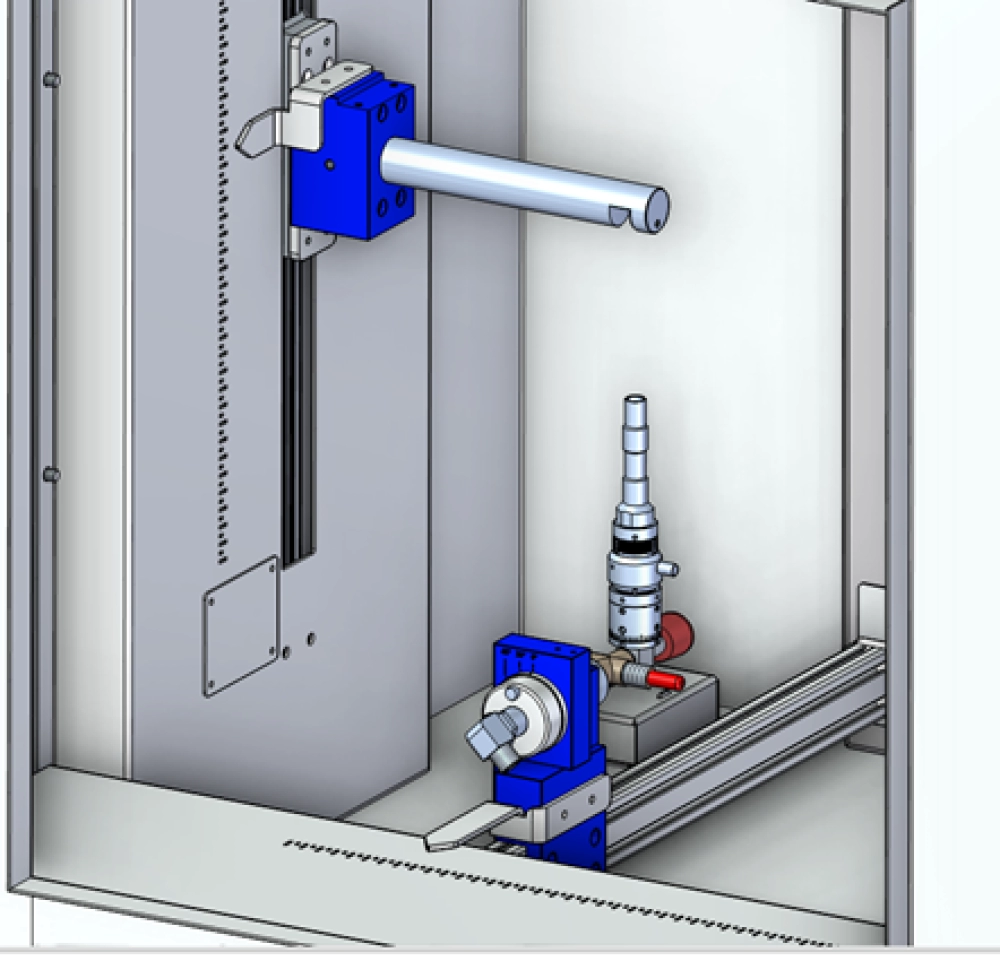

• Specimen support for Vertical Burning of Solid Plastics (VB) test conforming to UL 94 (tests V-0, V-1, V-2, 5VA, 5VB), ASTM D 3801 and equivalent standards.
• Specimen support for Vertical Burning (VB) test conforming to JAR 25 853 B standard.

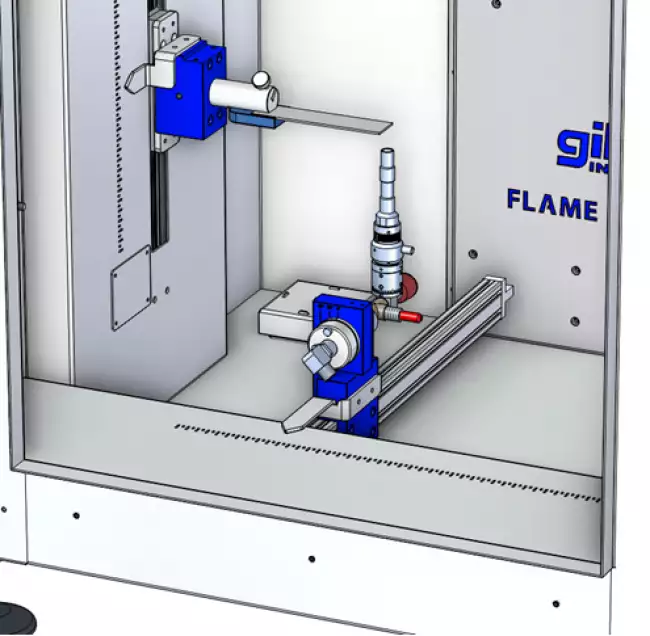

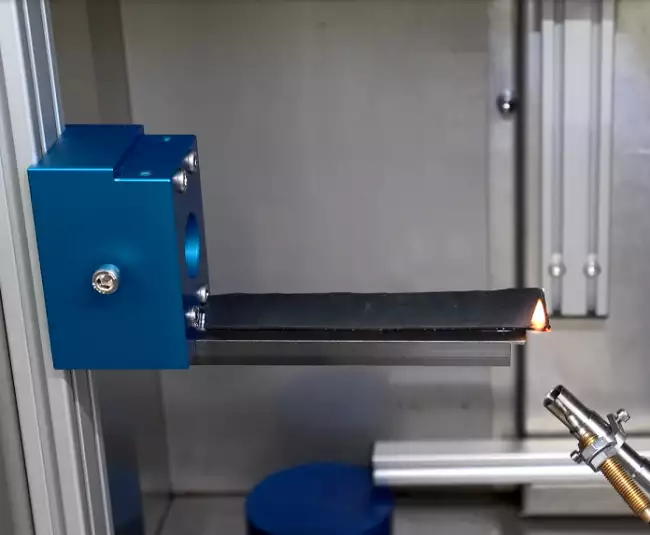

Test with Horizontal sample
• Specimen support for Horizontal Burning (HB) test conforming to UL 94, ASTM D 635 and equivalent standards.

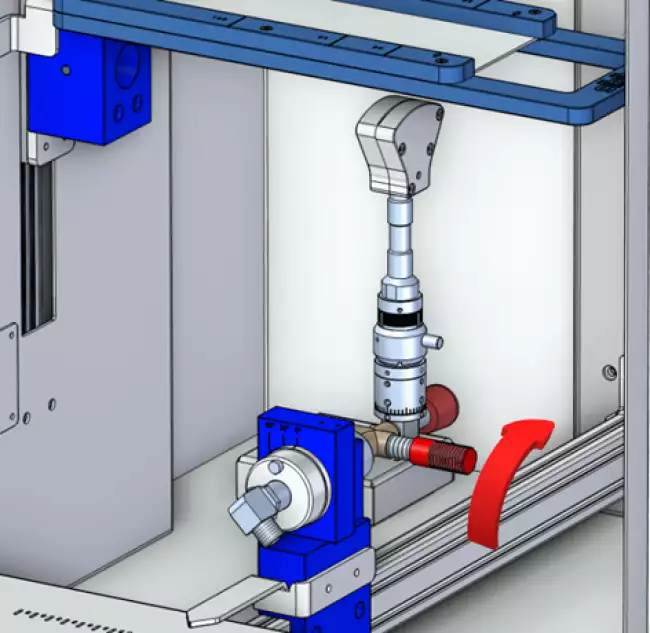

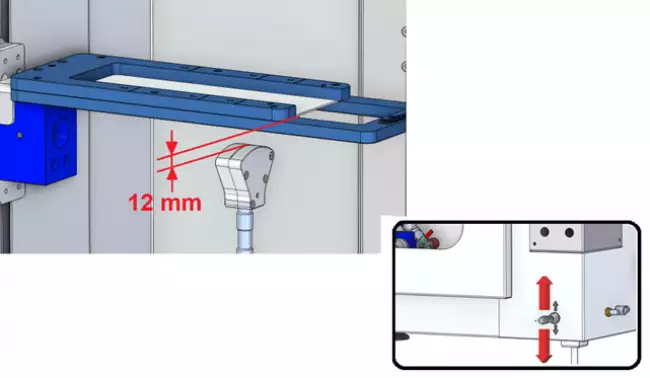

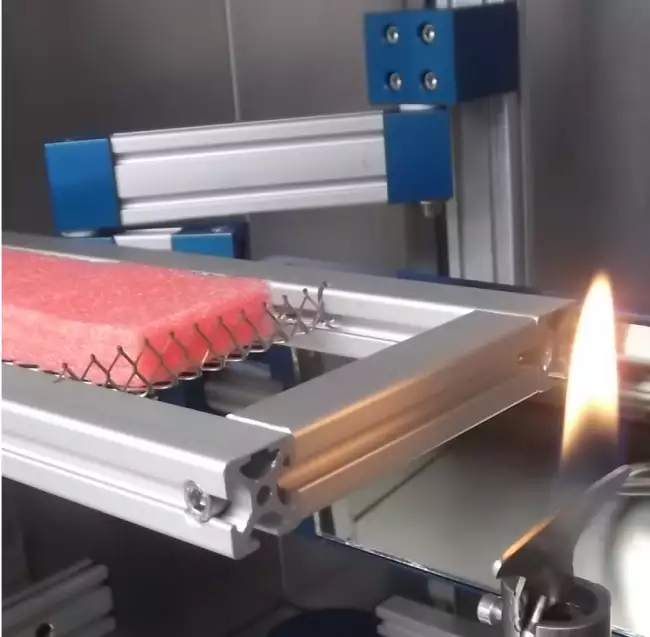

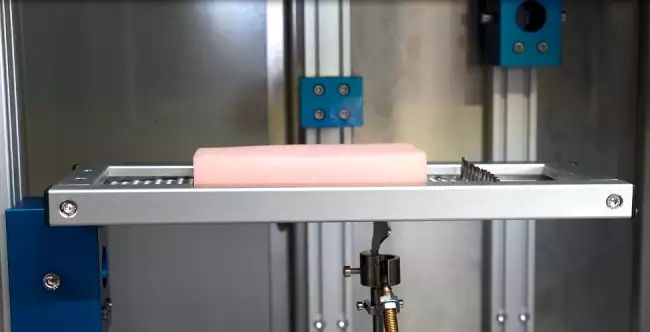

Test with Horizontal Sample of Expanded products
Specimen support for Horizontal Burning of Cellular Polymeric materials (HBF) test conforming to UL 94, ASTM D 4986 and equivalent.
Instrument Structure
The instrument, completeley made of Stainless Steel, is optimized for being placed on the table of your lab and for the connection to fume evacuation systems.
Development and production
The instrument is totally developed and produced in the plant of Gibitre Instruments in Italy.
All the mechanical parts are produced in the company workshop using modern CNC machines.
Components and sensors from well-known brands are selected in order to ensure the maximum reliability in the measures
Internal trained personnel takes care of all the production stages: assembly, start-up, calibration, packing, shipment and installation.
Testing Configuration
Types of test that can be performed
HBF (Horizontal Burning Foamed Material), HB (Horizontal Burning), MVB (Material Vertical Burning), VB (Vertical Burning)
Test Cabinet
Stainless steel cabinet with tempered glass viewing window and internal light.
Burner
Conforming to ASTM D5025 and CEI IEC 60695-11-4 standards. With support for flame angle set (0°, 20°, 45°).
Temperature Control
Internal Digital thermometer in conformity with ASTM D 5207 standard
Gas flow Regulation (Methane)
Integrated Flow meter
Timer
Digital Timer with 0.1 sec. resolution. The timer permits to set the flame exposition time. At the end of the count down for flame exposition, the timer permits to count flame extinction time.
Slide for the regulation of the position
The slide is controlled by an external handle that permits to move the burner inside the chamber.

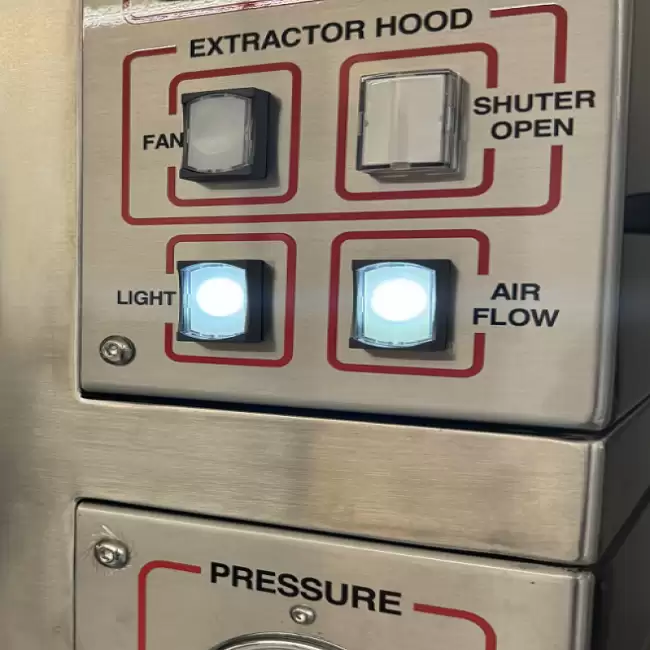

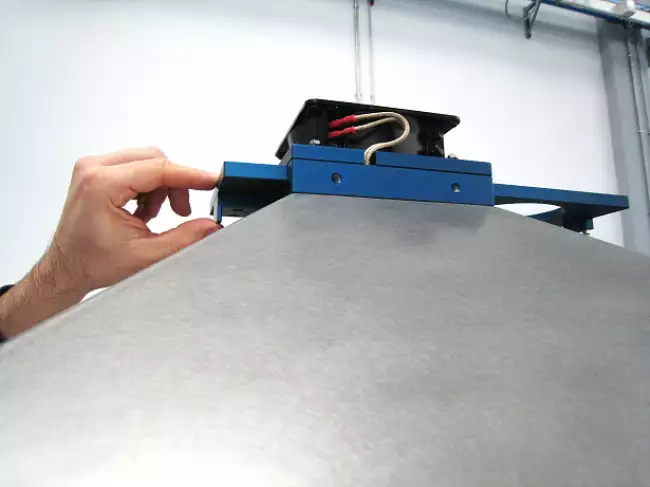

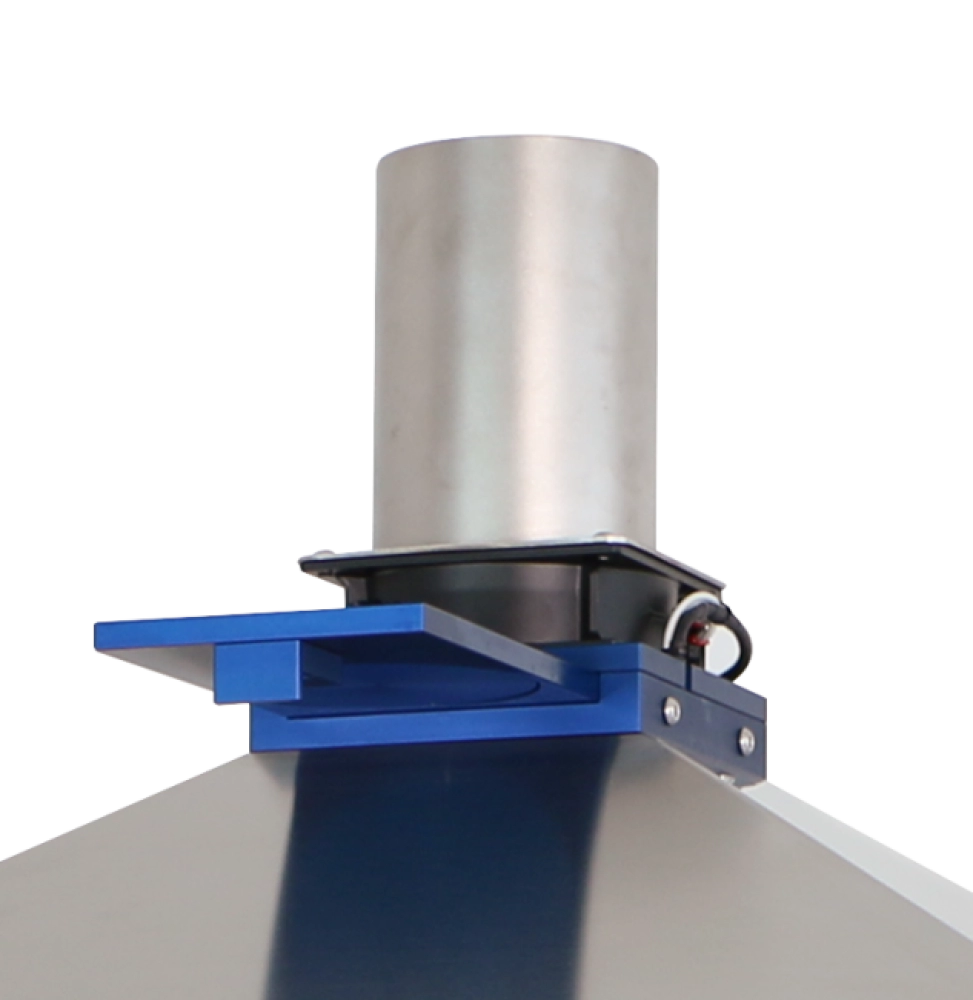

Aspiration of Fumes
Exhaust fan to remove fumes at the end of the test
Safety Devices
Safety Devices
Safety valve for gas flow interruption without flame
Labelling
CE Labelling
Calibration
Calibration
Calibration Report conforming to UL 94 with traceability to primary standards
Calibration of test Flame
Internal Thermometer with thermocouples for 20 mm Test Flame according to ASTM D 5207 standard.
Technical specifications
Power
220 VAC ±10%,50 Hz ±3,4 A,single phase, 40 W - 110 VAC ±10%, 60 Hz ±3 on request

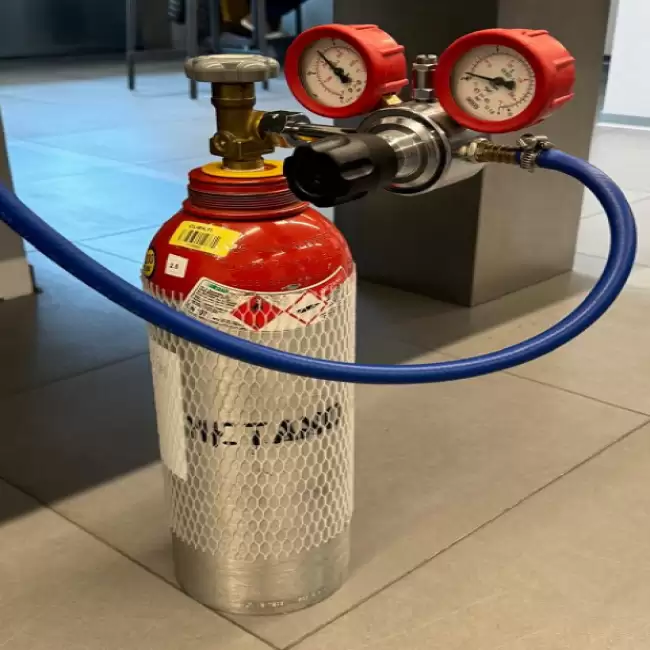

Gas Supply
The instrument must be connected to a Methane Cylinder.
A pressure reducer (not included) is required to supply the instrument with a pressure of 1 bar.
The connection to the gas network must be carried out by a qualified technician.
A pressure reducer (not included) is required to supply the instrument with a pressure of 1 bar.
The connection to the gas network must be carried out by a qualified technician.
Internal Dimension
(W x D x H) 850 x 700 x 812 mm

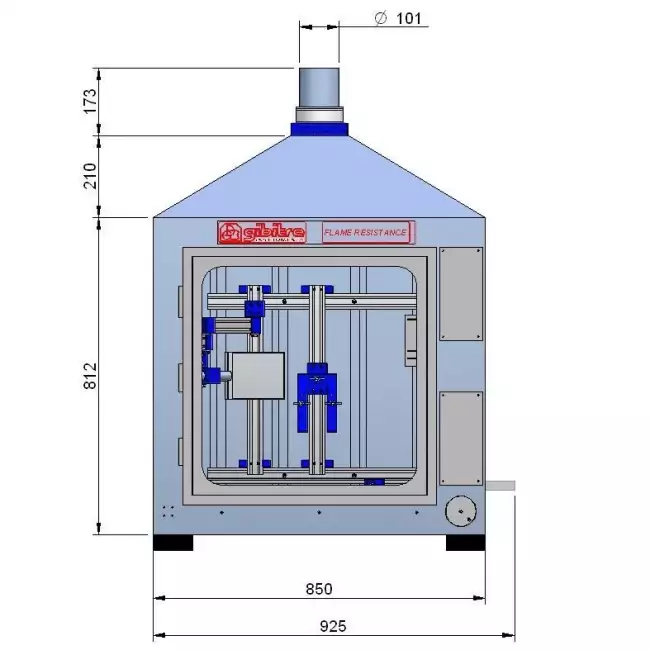

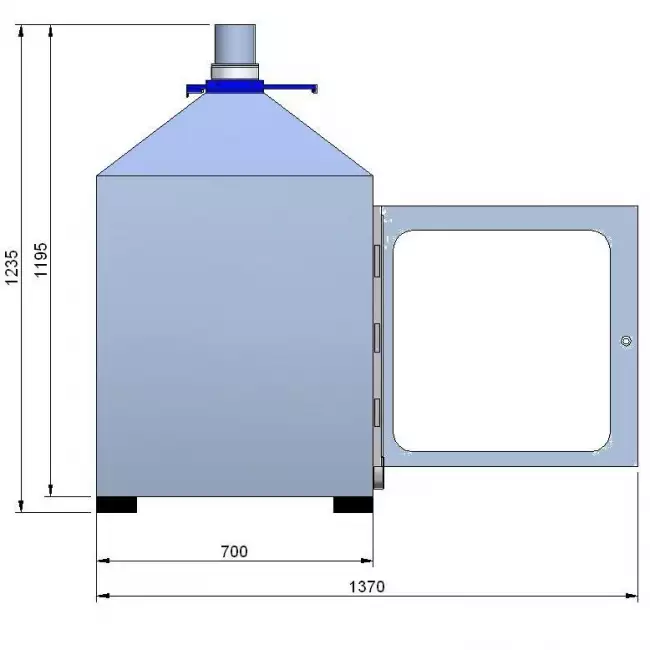

External Dimension
(W x D x H) 925 x 800 x 1235 mm
Weight
92 kg
